Safety switches metal

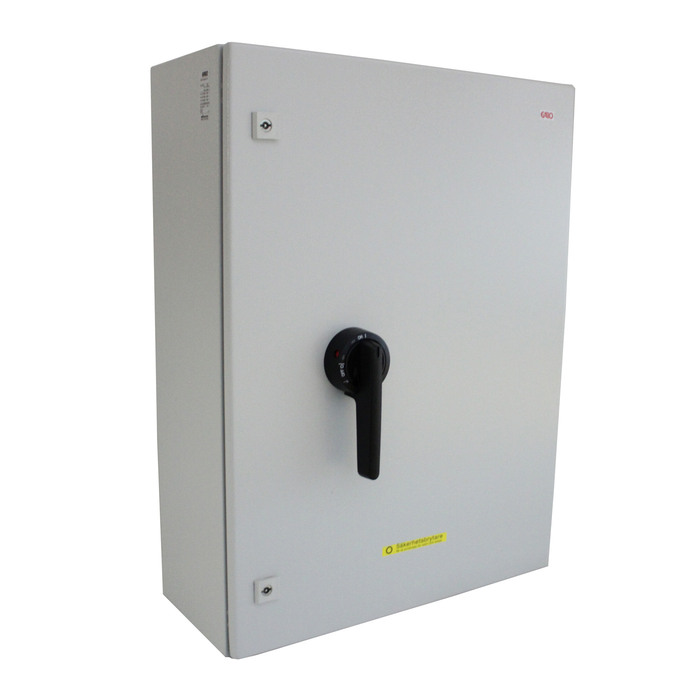

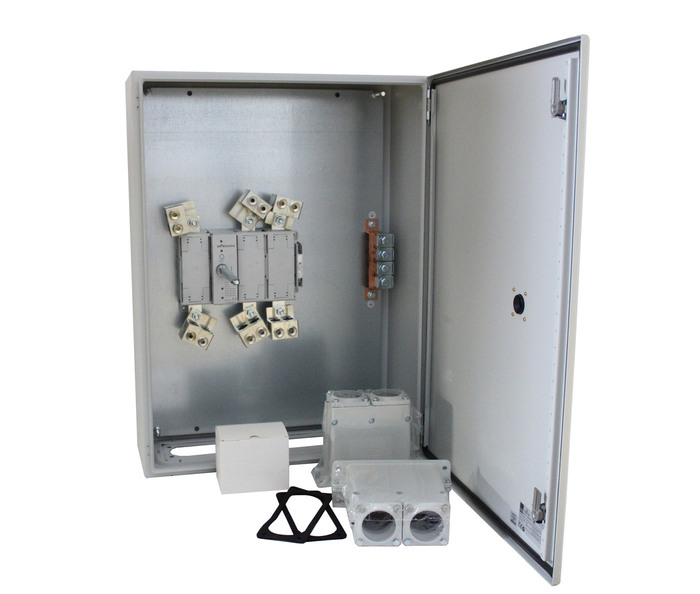

Safety switches metal Safety switch 3-pole 400A made of sheet steel. IP65
E-number
3134192
Article number
107616
Support
No.of Poles [pcs] 3
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 60947-3
Materials Sheet metal
Auxiliary contact Yes
Name SAFETY SW 3P 400A M
E-number 3134192
Article number 107616
Type designation GKUT3400AVT1V
Rated current AC23 400V [A] 400
Width [mm] 600
Height [mm] 800
Depth [mm] 310
Netweight [kg] 44.10
Connection PE [pcs] [mm²] 70-185
Glands 2xKF221-56+M16
Max connection area 2x240
kW 200
Connection Al [mm²] 2x240
Isolation voltage [V] 1000

Manual

More variants of Safety switches metal

E-number Article number Type designation Rated current AC23 400V [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Connection N & phase Cu [mm²] Connection PE [pcs] [mm²] Glands Max connection area kW Connection Al [mm²] Isolation voltage [V]
SAFETY SW 3P 80A M 3134189 107613 GKUT380T1V 80 300 400 161 7.50 70 70 2xM40+M16 70 45 690
SAFETY SW 3P 125A M 3134190 107614 GKUT3125AVT1V 125 300 400 161 8.50 70 2xM63+M16 120 55 120 400
SAFETY SW 3P 250A M 3134191 107615 GKUT3250AVT1V 250 380 600 270 21.50 70-185 1xKF221-56+M16 240 132 240 1000
SAFETY SW 3P 400A M 3134192 107616 GKUT3400AVT1V 400 600 800 310 44.10 70-185 2xKF221-56+M16 2x240 200 2x240 1000
SAFETY SW 3P 630A M 3134193 107617 GKUT3630VT1V 630 600 800 310 45.40 70-185 2xKF221-56+M16 2x240 355 2x240 1000

Accessories for Safety switches metal

Name E-number Article number Type designation Description
AUXILIARY SWITCH 2 80A 107646 Auxiliary switch fits 80A
AUXILIARY SWITCH 2 125-630A 107647 Auxiliary switch fits 125-160A
RAINROOF TR03 W410 RAINROOF TR03 W410 107651 Rainroof W410xH83 xL300 mm
