Measurement devices flex.wire 63A

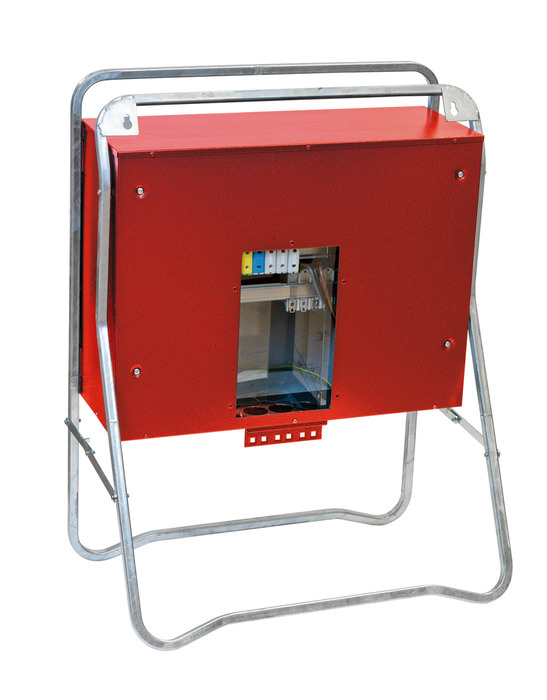

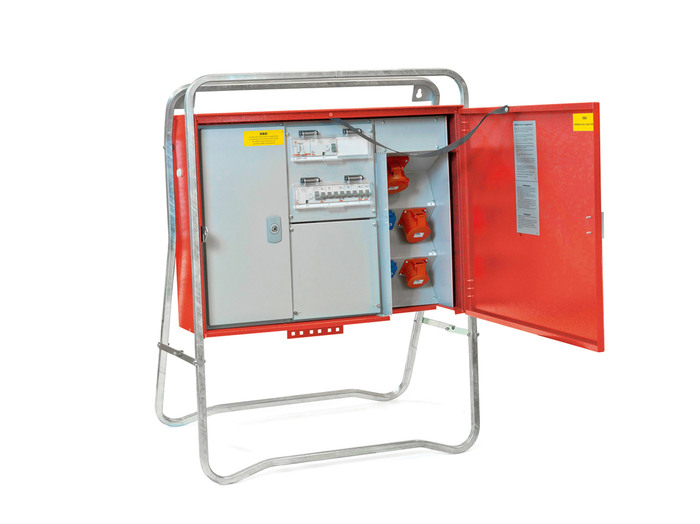

Mains distribution assembly 63A (HC63, HFC63) is normally used for the construction of terraced houses, apartment construction, events, etc. The distribution assembly is equipped with sockets 13-63A which are preceded by residual current devices and miniature circuit breakers. Some models are also equipped with output for onward feed of the earth cable (Type AKKJ) 16-95 mm². The distribution assemblies are equipped with a hot-dip galvanized stand and lockable door. Main distribution assembly 63A RCCB 2xschuko 1x16A outlet 1x32A outlet 1x63A outlet
E-number
2469112
Article number
2469112
Support
Materials Sheet metal
Degree of protection [IP] 44
Colour Red
Rated current [A] 63
Frequency [Hz] 50
Standard EN 61439-4
Rated voltage [V AC] 230/400
Package size [pcs] 1
Short-circuit current [kA] 17
Flanged socket outlet 1 pcs 63A 3P+N+E 230/400V
RCCB 1 pcs 63A/4P/300mA
Space for meters [pcs] 1
Name TEMP POW MET UNIT 63A RCCB
E-number 2469112
Article number 2469112
Type designation ZFSF GB 63/01/11102-21
Netweight [kg] 48
Width [mm] 790
Height [mm] 1050
Depth [mm] 520
Flanged socket outlet 1 pcs 32A 3P+N+E 230/400V
MCB 2 pcs C113
MCB 1 pcs C316
Schuko [pcs] 2
Flanged socket outlet 1 pcs 63A 3P+N+E 230/400V
MCB 1 pcs C332
RCCB 1 pcs 63A/4P/300mA
Connection [mm²] 2x5G16-95

More variants of Measurement devices flex.wire 63A

E-number Article number Type designation Netweight [kg] Width [mm] Height [mm] Depth [mm] Flanged socket outlet MCB MCB Schuko [pcs] Flanged socket outlet MCB RCCB RCCB Connection [mm²]
TEMP POWER MET UNIT 63A S 2469021 2469021 ZSF GBN 63/00/11102-11 48 790 1100 545 1 pcs 32A 3P+N+E 230/400V 2 pcs C113 1 pcs C316 2 1 pcs 63A 3P+N+E 230/400V 1 pcs C332 1 pcs 63A/4P/300mA 4-5G16-95
TEMP POW MET UNIT 63A RCCB 2469045 2469045 ZSF FVM-GB 63/01/12303-21 61 900 1175 545 2 pcs 32A 3P+N+E 230/400V 3 pcs C113 3 pcs C316 3 1 pcs 63A 3P+N+E 230/400V 2 pcs C332 1 pcs 63A/4P 1 pcs 63A/4P/300mA 2x5G16-95
TEMP POW MET UNIT 63A RCCB 2469112 2469112 ZFSF GB 63/01/11102-21 48 790 1050 520 1 pcs 32A 3P+N+E 230/400V 2 pcs C113 1 pcs C316 2 1 pcs 63A 3P+N+E 230/400V 1 pcs C332 1 pcs 63A/4P/300mA 2x5G16-95

Accessories for Measurement devices flex.wire 63A

Name E-number Article number Type designation Description
RCCB GD 40A 30mA 4P RCCB GD 40A 30mA 4P 107977 RCCB GD 40A 30mA 4-pole
RCCB GD 63A 30mA 4P RCCB GD 63A 30mA 4P 107978 RCCB GD 63A 30mA 4-pole
RCCB GD 63A 300mA 4P RCCB GD 63A 300mA 4P 108029 RCCB GD 63A 300mA 4-pole
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A 1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB GS C-KAR 13A 10kA1P MCB GS C-KAR 13A 10kA1P 2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB GS C-KAR 16A 10kA 3P MCB GS C-KAR 16A 10kA 3P 2142753 2142753 MCB GS C316 MCB GS C-Characteristic 16A 10kA 3-pole
MCB GS C-KAR 32A 10kA 3P MCB GS C-KAR 32A 10kA 3P 2142756 2142756 MCB GS C332 MCB GS C-Characteristic 32A 10kA 3-pole
MCB GS C-KAR 63A 10kA 3P MCB GS C-KAR 63A 10kA 3P 2142759 2142759 MCB GS C363 MCB GS C-Characteristic 63A 10kA 3-pole
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h 2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h 2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
SOCKET STRAIGHT 5P 63A 6h SOCKET STRAIGHT 5P 63A 6h 2424949 2424949 UI 463-6 S Socket straight basic 5-poles 63A 6h
SOCKET SLOPING 5P 63A 6h SOCKET SLOPING 5P 63A 6h 2425071 2425071 UIS 463-6 S Socket sloping basic 5-poles 63A 6h
POWERB 16A 00204-2S RCCB POWERB 16A 00204-2S RCCB 2468976 2468976 U GBL 416-6/00/00204-10A Portable cases 16A RCCB 4xschuko 2x16A outlet 2xMCB
POWERB 32A 01104-2S RCCB POWERB 32A 01104-2S RCCB 2468977 2468977 U GBL 432-6/00/01104-10 Portable cases 32A RCCB 4xschuko 1x16A outlet 1x32A outlet 2xMCB
POWERDISTR 63A STEELFRAME 3RCB POWERDISTR 63A STEELFRAME 3RCB 2469015 2469015 U GBSN 463-6/00/12306-21 Distribution panel 63A RCCB 6xschuko 3x16A outlet 2x32A outlet 1x63A outlet
POWERB GB 16A 002.10 RCCB POWERB GB 16A 002.10 RCCB 2469108 2469108 U GBN 416-6/00/002.10-10 Portable cases 16AA RCCB 10xschuko 2x16A outlet
POWERDISTR 32A ALUFR 01306 JFB POWERDISTR 32A ALUFR 01306 JFB 2469110 2469110 U GBSA 432-6/00/01306-30 Distribution panel 32A RCCB 6xschuko 3x16A outlet 1x32A outlet
EXT CABLE 16A H07 5G2,5 25M EXT CABLE 16A H07 5G2,5 25M 2403609 352095 SKARVK-416-25H Extension cable 16A H07RN-F 5G2,5 25meter
EXT CABLE 32A H07 5G6 25M EXT CABLE 32A H07 5G6 25M 352096 Extension cable 32A H07RN-F 5G6 25meter
EXT CABLE 63A H07 5G16 25M EXT CABLE 63A H07 5G16 25M 352097 Extension cable 63A H07RN-F 5G16 25meter
