Enclosures with bars 700mm

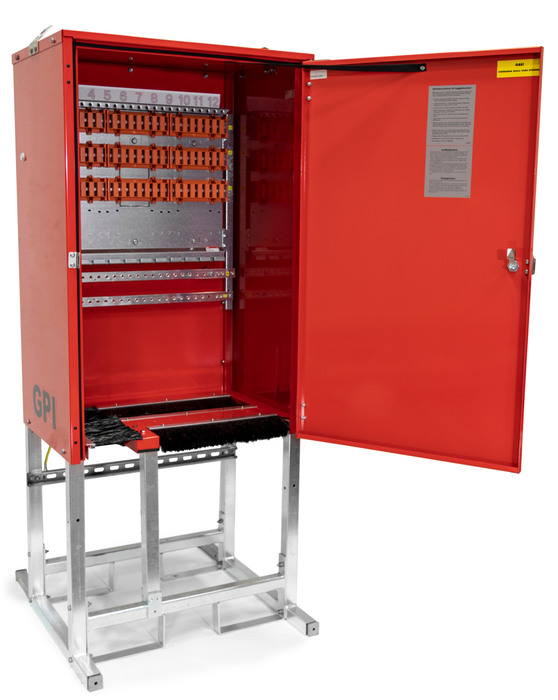

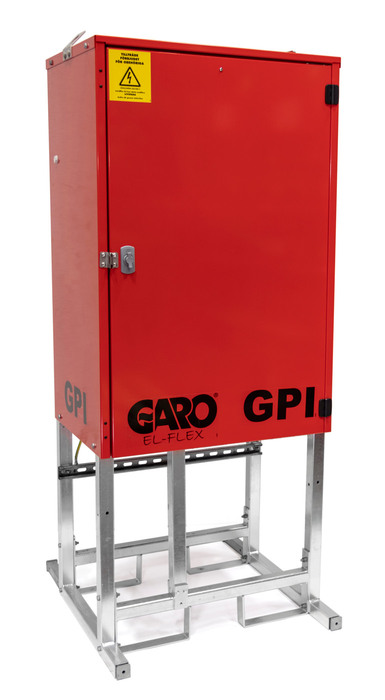

GPI 700 is available in two versions: with or without meter cabinet. Includes busbar system for 630A. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm GPI temporary power distribution board 700mm 12 modules

E-number
2469060

Article number
2469060

Support

Materials	Sheet metal
Degree of protection [IP]	44
Colour	Red
Rated current [A]	630
Frequency [Hz]	50
Standard	EN 61439-4
Width [mm]	700
Height [mm]	1662
Depth [mm]	506
Rated voltage [V AC]	230/400
Stands	Yes
Modules [pcs]	12
Max cabelarea[mm²]	4-/5G240

Name	GPI TEMP POWER DISTR 700MM 12
E-number	2469060
Article number	2469060
Type designation	GPI 700/12
Netweight [kg]	97

More variants of Enclosures with bars 700mm

	E-number	Article number	Type designation	Netweight [kg]
	2469060	2469060	GPI 700/12	97
	2469064	2469064	GPI 700/12-M	112

Accessories for Enclosures with bars 700mm

Name	E-number	Article number	Type designation	Description
COVER MODULE GPI 1M 50MM	2469101	2469101	BM-1	Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM	2469102	2469102	BM-3	Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM	2469103	2469103	BM-4	Cover module GPI 4 modules
CONTACT KIT PROTECT GPI	2469104	2469104	BS-GPI	Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI	2469107	2469107	TF	Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95	2466339	351982	PE/N 10-95	Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240	2466340	351983	PE/N 95-240	Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M		80793		Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M		80794		Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M		80795		Protection cover support insert for outlet-modules 5modules fits GPI-system.
