Enclosures with bars 500mm

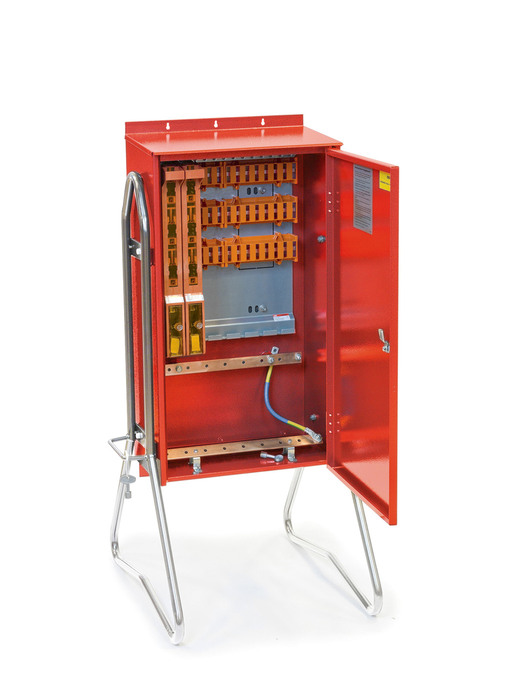

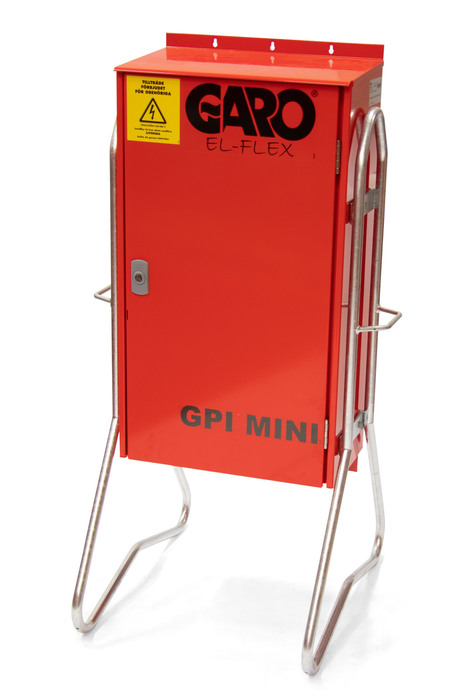

GPI MINI is a small, portable cabinet with busbar system for 630A. Normally used for distribution of earth cable at large construction sites. This model is designed for SLK strips on incoming and outgoing groups, not for socket modules. Tightening torque terminalsblock 10-95mm²:15 Nm Tightening torque terminalsblock 95-2470mm²:25 Nm GPI mini cabinet width=500mm 8modules
E-number
2469113
Article number
2469113
Support
Materials Sheet metal
Degree of protection [IP] 44
Colour Red
Rated current [A] 400
Frequency [Hz] 50
Standard EN 61439-4
Rated voltage [V AC] 230/400
Modules [pcs] 8
Max cabelarea[mm²] 4-/5G150
Name GPI TEMP POWER DISTR 500MM 8
E-number 2469113
Article number 2469113
Type designation GPI 500/8 MINI
Netweight [kg] 40
Width [mm] 525
Height [mm] 1250
Depth [mm] 650
Stands Yes

More variants of Enclosures with bars 500mm

E-number Article number Type designation Netweight [kg] Width [mm] Height [mm] Depth [mm] Stands
GPI TEMP POWER DISTR 500MM 8 2469113 2469113 GPI 500/8 MINI 40 525 1250 650 Yes
GPI TEMP POWER DISTR 500MM 8NS 2469114 2469114 GPI 500/8 MINI EJ STATIV 37 500 830 300 No

Accessories for Enclosures with bars 500mm

Name E-number Article number Type designation Description
COVER MODULE GPI 1M 50MM COVER MODULE GPI 1M 50MM 2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM COVER MODULE GPI 3M 150MM 2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM COVER MODULE GPI 200MM 2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI CONTACT KIT PROTECT GPI 2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI TRANSPORT SECURITY GPI 2469107 2469107 TF Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
