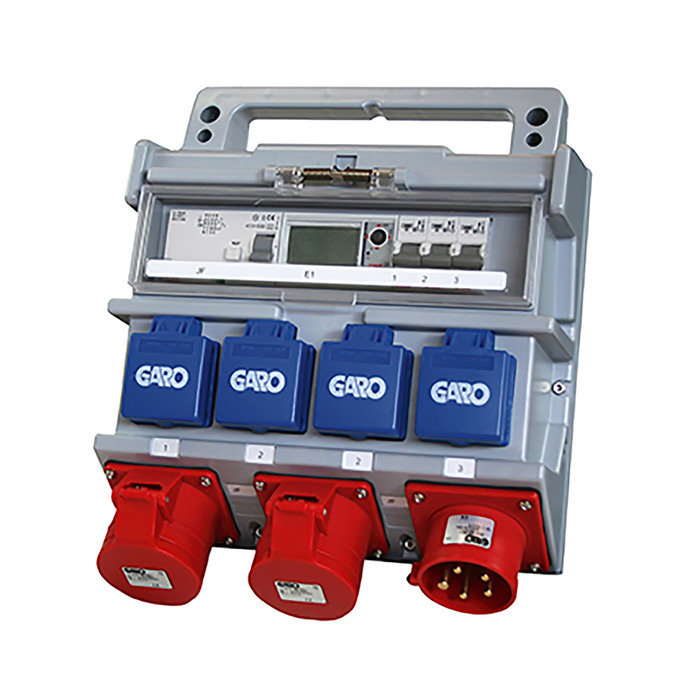

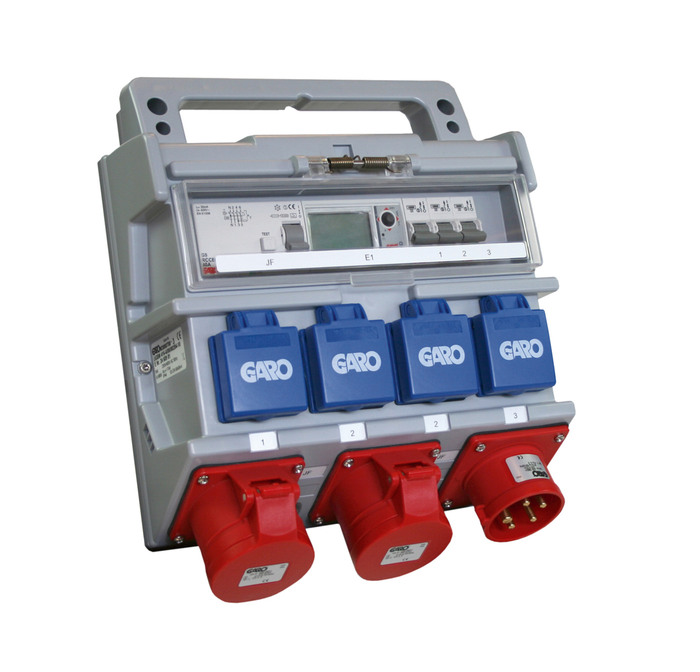

Powerbox energy meter 16A

Portable electricity cases/distribution boards 16A for different purposes, such as distribution, with a different number of sockets, with power meter, for containers, lighting control, concrete curing, etc. Portable cases 16A RCCB 4xschuko 2x16A outlet energymeter
E-number
2468981
Article number
2468981
Type designation U GBL 416-6 KWH-MÄTARE
Materials Plastic
Degree of protection [IP] 44
Colour Grey
Netweight [kg] 2.50
Rated current [A] 16
Frequency [Hz] 50
Standard EN 61439-3
Width [mm] 275
Height [mm] 330
Depth [mm] 120
Flanged plug 1 pcs 16A 3P+N+E 230/400V
Flanged socket outlet 2 pcs 16A 3P+N+E 230/400V
Rated voltage [V AC] 230/400
Package size [pcs] 1
Short-circuit current [kA] 10
RCCB 1 pcs 40A/4P
MCB 3 pcs C113
Meter Yes
Schuko [pcs] 4
Short-circuit current [A] 9,2
Name POWERBOX 16A RCCB W KWH METER
E-number 2468981
Article number 2468981
