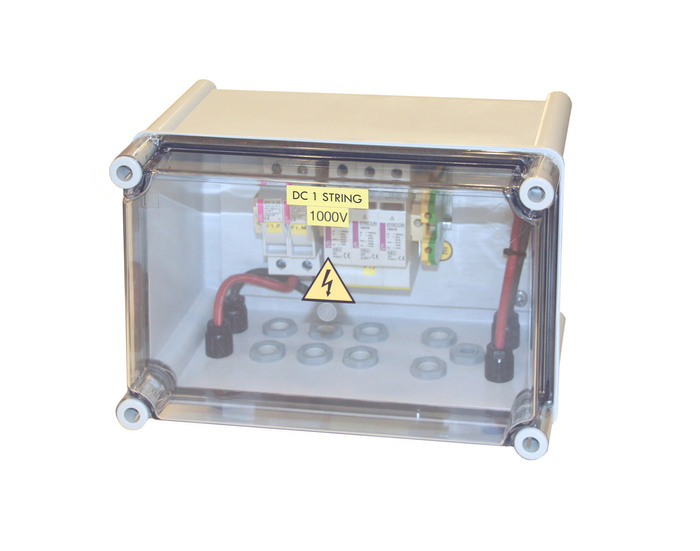

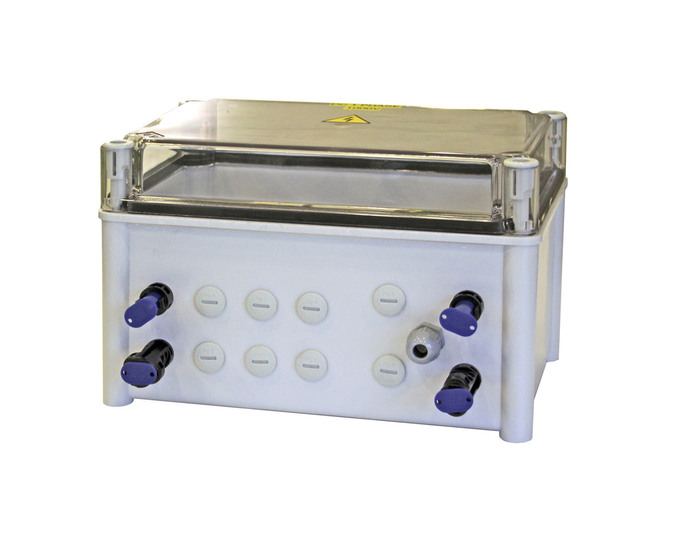

DC-housing
Garo DC Housing contain fuses and surge protection. Their job is to prevent excessive voltage an dcurrent in the equipment that may arise when, for example lightning. DC-box solar 1-phase
| Type designation | DCBOXSOL1F |
|---|---|
| Package size [pcs] | 1 |
| SPD Imax [kA] | 40 |
| Name | DC BOX SOL 1P |
|---|---|
| E-number | 5287863 |
| Article number | 107855 |
| Width [mm] | 270 |
| Height [mm] | 210 |
| Depth [mm] | 175 |
| Netweight [kg] | 6 |
| No. strings [pcs] | 1 |
| DC fuse | 12Ax2 |
| No.SPC [pcs] | 1 |
| Antal MPP trackers [st] | 0 |
