Fuse combination boxes GPK

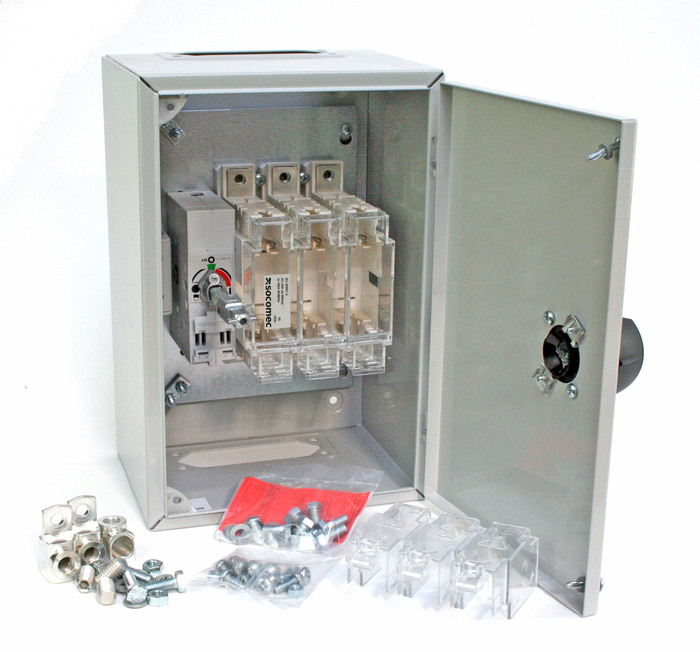

The fuse-switch consists of a combined 3-pole fuse-link base with front operated switch-disconnector function. The cover is interlocked and cannot be opened in the closed position. In the open position, it is energized on both sides of the fuse-link and the switching functions also satisfy the conditions applicable for the disconnector. It is also possible to lock the operating mechanism with a padlock in the closed position. SLBP 3250, 3400 SLBP and SLBP 3630 have two-piece flange openings on the top and bottom. The fuse-switch is also equipped with PE+N. Fuse switch enclosure 125A 3-pole for blade fuse 00 flange 13 up/down
E-number
2384201
Article number
2384201
Support
Degree of protection [IP] 43
Colour RAL7035 Grey
Standard EN 61439-3
Materials Sheet steel

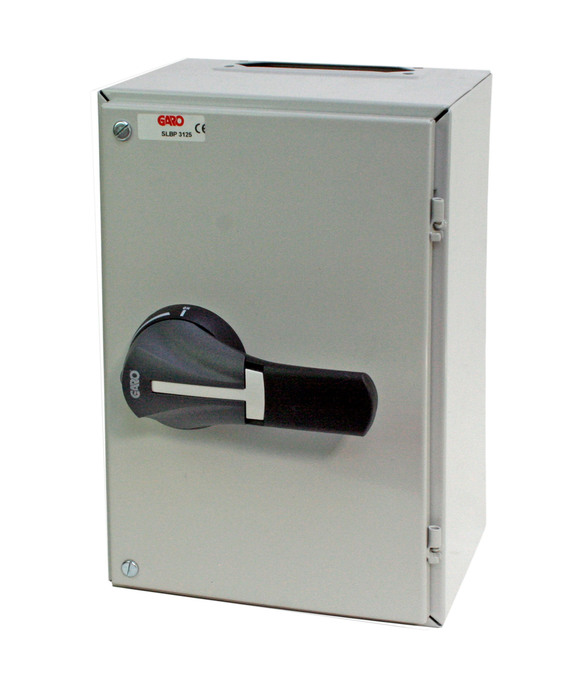

Name FUSE COMB BOX 125A SP
E-number 2384201
Article number 2384201
Type designation SLBP 3125
Rated current [A] 125
Width [mm] 215
Height [mm] 330
Depth [mm] 175
Netweight [kg] 6.30
Switch [A] 3x125
Fuse size 00

More variants of Fuse combination boxes GPK

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Switch [A] Fuse size
FUSE COMB BOX 125A SP 2384201 2384201 SLBP 3125 125 215 330 175 6.30 3x125 00
FUSE COMB BOX 160A SP 2384205 2384205 SLBP 3160 160 270 330 175 7.20 3x160 00
FUSE COMB BOX 250A SP 2384215 2384215 SLBP 3250 250 325 440 240 14.80 3x250 1
FUSE COMB BOX 400A SP 2384222 2384222 SLBP 3400 400 435 550 240 19 3x400 2

Accessories for Fuse combination boxes GPK

Name E-number Article number Type designation Description
SÄ 4 RESIN END FLANGE 2394216 2394216 SÄ4 Flange resin end 4
SB 4 RESIN SUPPORT FLANGE 2394218 2394218 SB4 Flange resin support SB4
BUSBAR SUPPORT SL 12 2394220 2394220 SL12 Busbar support SL12
SÄS 4 RESIN END FLANGE 2394370 2394370 Reisin end flange SÄS4
SBS 4+1 RESIN SUPPORT FLANGE 2394376 2394376 Flange resin support SBS 4+1
FLANGE SM 0 FLANGE SM 0 2394410 2394410 SM0 Flange between SM 0
FLANGE SM FLANGE SM 2394411 2394411 SM Flange between SM
FLANGE SM416 FLANGE SM416 2394412 2394412 SM416 Flange between SM416
FLANGE SM435 FLANGE SM435 2394413 2394413 SM435 Flange between SM435
CABLE SPREADER W CLAMP PF 1301-38 CABLE SPREADER W CLAMP PF 1301-38 2645003 2645003 PF 1301-38 Cable spreder with clamp PF1301-38
CABLE SPREADER W CLAMP PF 1302-38 CABLE SPREADER W CLAMP PF 1302-38 2645007 2645007 PF 1302-38 Cable spreder with clamp PF1302-38
CABLE SPREADER 121-60 CABLE SPREADER 121-60 2645115 2645115 KF 121-60 Cable spreader with clamp 121-60
CABLE SPREADER 221-56 CABLE SPREADER 221-56 2645125 2645125 KF 221-56 Cable spreader with clamp 221-56
CABLE SPREADER W CLAMP KF 133-60 CABLE SPREADER W CLAMP KF 133-60 2645145 2645145 KF 133-60 Cable spreader with clamp KF 133-60
CABLE SPREADER W CLAMP KF 233-60 CABLE SPREADER W CLAMP KF 233-60 2645151 2645151 KF 233-60 Cable spreader with clamp KF 233-60
CABLE SPREADER W CLAMP KF 233-68 CABLE SPREADER W CLAMP KF 233-68 2645153 2645153 KF 233-68 Cable spreader with clamp KF 233-68
CABLE SPREADER W CLAMP KF 333-56 CABLE SPREADER W CLAMP KF 333-56 2645161 2645161 KF 333-56 Cable spreader with clamp KF 333-56
DM 13 DOUBLE NUT DM 13 DOUBLE NUT 2646093 2646093 DM 13 Double nut DM13
DM 21 DOUBLE NUT DM 21 DOUBLE NUT 2646094 2646094 DM 21 Double nut DM21
