• FUSE BASE ENCL 160A I/1 1/3 SP - 1
  • FUSE BASE ENCL 160A I/1 1/3 SP - 2

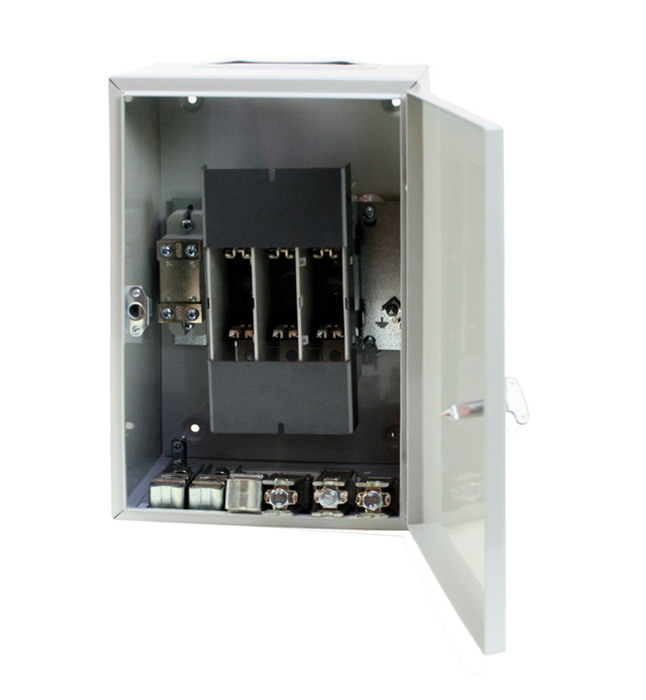

Fuse base enclousures

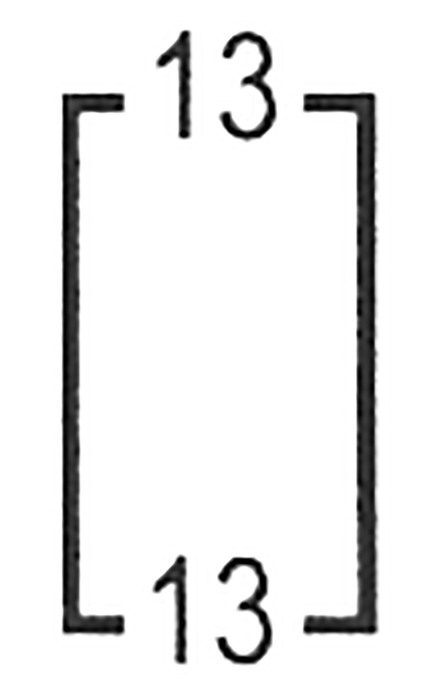

The boxes are equipped with contract protected 3-pole fuse links with shields between the poles, neutral terminal and earth conductor terminal. The cover is designed with a sealed snap-lock. The boxes 3400 and 3630 has a two-piece flange opening. Fuse base box 160A for blade fuse 3x00 flange 13 up/down
E-number
2383913
Article number
2383913
Support
Degree of protection [IP] 43
Colour RAL7035 Grey
Standard EN 61439-3
Materials Sheet steel
No.of poles [pcs] 1/3
Name FUSE BASE ENCL 160A I/1 1/3 SP
E-number 2383913
Article number 2383913
Type designation GBSP 3160 I/I
Rated current [A] 160
Width [mm] 215
Height [mm] 330
Depth [mm] 150
Netweight [kg] 5.10
Fuse size 00

More variants of Fuse base enclousures

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Fuse size
FUSE BASE ENCL 160A I/1 1/3 SP 2383913 2383913 GBSP 3160 I/I 160 215 330 150 5.10 00
FUSE BASE ENCL 160A II/II I/3 SP 2383917 2383917 GBSP 3160 II/II 160 270 330 150 5.80 00
FUSE BASE ENCL 250A 1/3 SP 2383932 2383932 GBSP 3250 250 270 360 175 7.80 1
FUSE BASE ENCL 400A 1/3 SP 2383935 2383935 GBSP 3400 400 435 550 225 18.30 2
FUSE BASE ENCL 630A 1/3 SP 2383943 2383943 GBSP 3630 630 435 550 225 18.80 3

Accessories for Fuse base enclousures

Name E-number Article number Type designation Description
CABLE SPREADER W CLAMP PF 1301-38 CABLE SPREADER W CLAMP PF 1301-38 2645003 2645003 PF 1301-38 Cable spreder with clamp PF1301-38
CABLE SPREADER W CLAMP PF 1302-38 CABLE SPREADER W CLAMP PF 1302-38 2645007 2645007 PF 1302-38 Cable spreder with clamp PF1302-38
CABLE SPREADER 121-60 CABLE SPREADER 121-60 2645115 2645115 KF 121-60 Cable spreader with clamp 121-60
CABLE SPREADER 221-56 CABLE SPREADER 221-56 2645125 2645125 KF 221-56 Cable spreader with clamp 221-56
CABLE SPREADER W CLAMP KF 133-60 CABLE SPREADER W CLAMP KF 133-60 2645145 2645145 KF 133-60 Cable spreader with clamp KF 133-60
CABLE SPREADER W CLAMP KF 233-60 CABLE SPREADER W CLAMP KF 233-60 2645151 2645151 KF 233-60 Cable spreader with clamp KF 233-60
CABLE SPREADER W CLAMP KF 233-68 CABLE SPREADER W CLAMP KF 233-68 2645153 2645153 KF 233-68 Cable spreader with clamp KF 233-68
CABLE SPREADER W CLAMP KF 333-56 CABLE SPREADER W CLAMP KF 333-56 2645161 2645161 KF 333-56 Cable spreader with clamp KF 333-56
DM 13 DOUBLE NUT DM 13 DOUBLE NUT 2646093 2646093 DM 13 Double nut DM13
DM 21 DOUBLE NUT DM 21 DOUBLE NUT 2646094 2646094 DM 21 Double nut DM21
