Changeover boxes

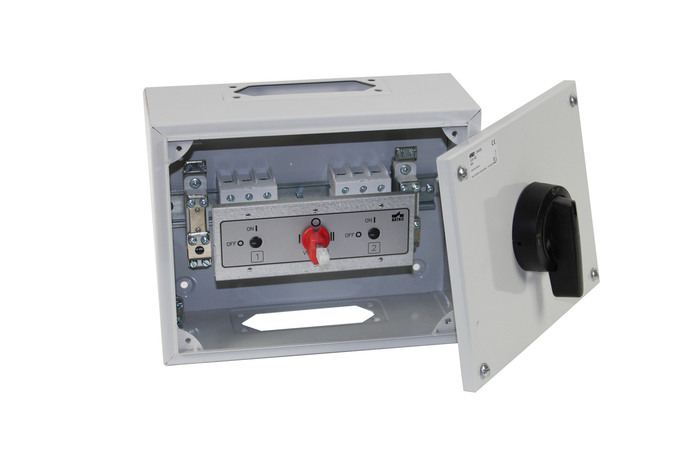

The switch consists of 2 breakers, mechanically interlocked. The switch is adapted to the TN-C system, but can also be mounted for the TN-S system. Changeover box 80A flange 4x13
E-number
2384085
Article number
2384085
Support
Type designation GOK 380
Rated current [A] 80
Degree of protection [IP] 43
Colour RAL7035 Grey
Standard EN 61439-3
Width [mm] 275
Height [mm] 215
Depth [mm] 120
Netweight [kg] 3.70
Materials Sheet steel
Switch [A] 3x80
Name CHANGEOVER BOX 80A SP
E-number 2384085
Article number 2384085

Accessories for Changeover boxes

Name E-number Article number Type designation Description
CABLE SPREADER W CLAMP PF 1301-38 CABLE SPREADER W CLAMP PF 1301-38 2645003 2645003 PF 1301-38 Cable spreder with clamp PF1301-38
CABLE SPREADER W CLAMP PF 1302-38 CABLE SPREADER W CLAMP PF 1302-38 2645007 2645007 PF 1302-38 Cable spreder with clamp PF1302-38
DM 13 DOUBLE NUT DM 13 DOUBLE NUT 2646093 2646093 DM 13 Double nut DM13
