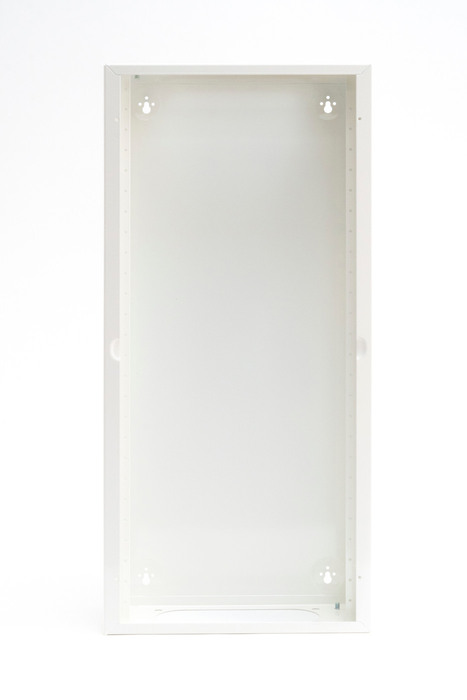

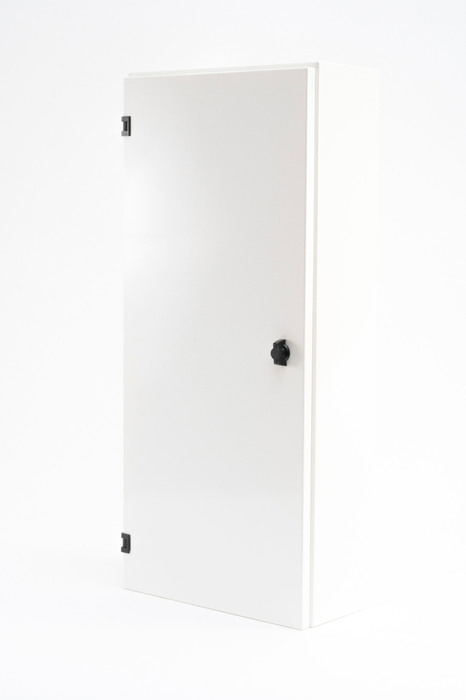

Final distribution empty cabinet

Cabinet type MSS, supplied empty. Protection class IP40, IP44 with seal for the door. Suitable DIN rails are DR and DRS and front panels FP and FPS. Depth measurement 150mm. Distribution cabinet empty 56modules
Article number
2260152
Support
Degree of protection [IP] 40
Colour RAL9010 White
Standard EN 61439-3
Depth [mm] 145
Materials Sheet metal
Name DISTRIBUTION CABINET 56M
Article number 2260152
Type designation MSS 56/1
Modules [pcs] 48
Width [mm] 315
Height [mm] 680
Netweight [kg] 8.16
Flanges up 1x21
Flanges down 1x21

More variants of Final distribution empty cabinet

E-number Article number Type designation Modules [pcs] Width [mm] Height [mm] Netweight [kg] Flanges up Flanges down
DISTRIBUTION CABINET 42M 2260150 MSS 42/1 36 315 530 6.77 1x21 1x21
DISTRIBUTION CABINET 56M 2260152 MSS 56/1 48 315 680 8.16 1x21 1x21
DISTRIBUTION CABINET 90M 2260154 MSS 90/2 90 610 530 10 2x21 2x21
DISTRIBUTION CABINET 120M 2260156 MSS 120/2 120 610 680 13 2x21 2x21
