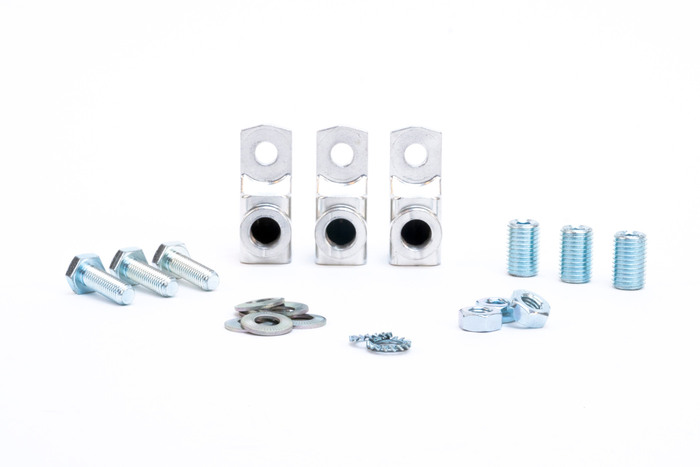

• AL TERM 16-185 200-250A 3P - 1

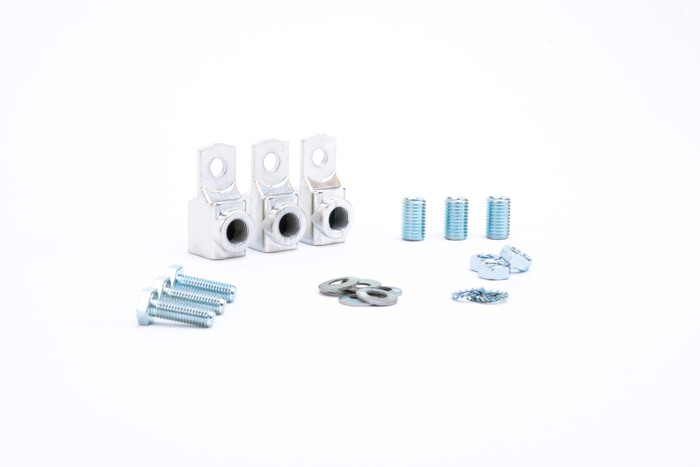

  • AL TERM 16-185 200-250A 3P - 2

Clamps

Clamps AL TERM 16-185 200-250A 3P
E-number
2260404
Article number
2260404
Support
Name AL TERM 16-185 200-250A 3P
E-number 2260404
Article number 2260404
Type designation AL CU 16-185 3P
Wire flexible [mm²] 16-185 Al/Cu
Tightening torque [Nm] 25
Package size [pcs] 3st/Frp
Width [mm] 70
Height [mm] 110
Depth [mm] 40
Netweight [kg] 0.34

More variants of Clamps

E-number Article number Type designation Poles Wire flexible [mm²] Tightening torque [Nm] Package size [pcs] Width [mm] Height [mm] Depth [mm] Netweight [kg]
AFX 24 BAR CLIP 2260348 2260348 AFX 24 0.19
AFX 40 BAR CLIP 2260349 2260349 AFX 40 85 98 94 1.58
AL.TERMINAL 16-95.125-160A.3p 2260402 2260402 AL CU 16-95 3P 16-95 Al/Cu 14 3st/Frp 50 110 30 0.16
AL TERM 16-185 200-250A 3P 2260404 2260404 AL CU 16-185 3P 16-185 Al/Cu 25 3st/Frp 70 110 40 0.34
AL.TERMINAL 50-300.400A.3p 2260406 2260406 AL CU 50-300 3P 50-300 Al/Cu 45 3st/Frp 80 110 40 0.53
AL.TERMINAL 70-300.630A 3p 2260408 2260408 AL CU 70-300 3P 3 70-300 Al/Cu 110 120 40 0.75
AL TERM 16-185 200-250A 4P 2260410 2260410 AL CU 16-185 4P 16-185 Al/Cu 25 4st/Frp 90 120 35 0.46
AL TERM 50-300 400A 4P 2260412 2260412 AL CU 50-300 4P 50-300 Al/Cu 45 4st/Frp 80 130 40 0.70
