• WALL SOCKET UAB 3P 16A 6h - 1
  • WALL SOCKET UAB 3P 16A 6h - 2

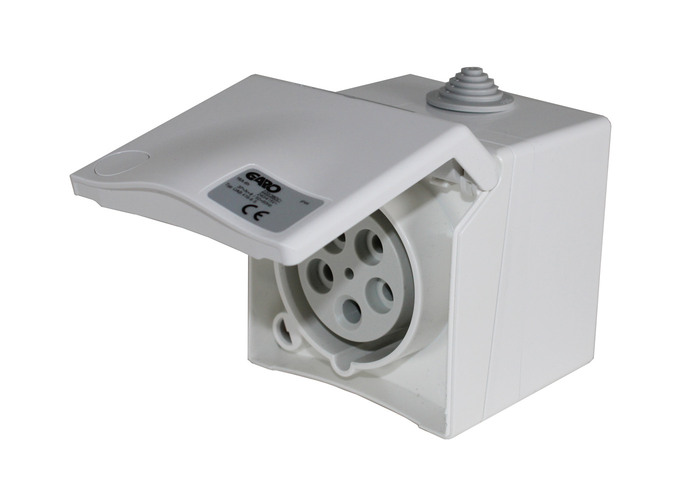

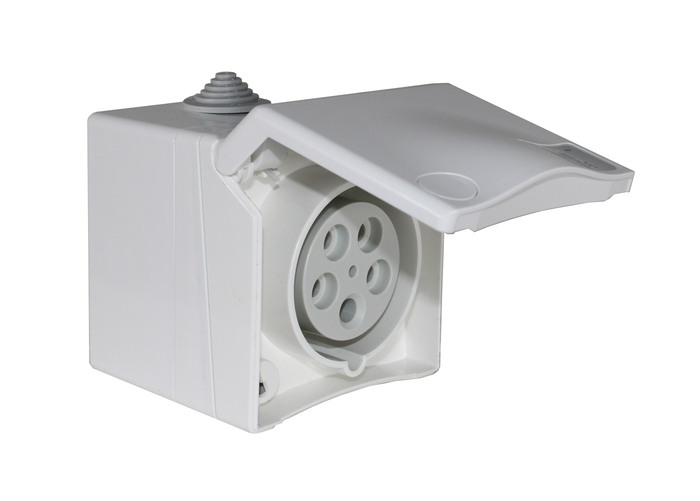

Sockets wallmounting Basic UAB 16A IP44

Basic, our standard range with a screw function. Socket 16A for wall mounting. Supplied with cable gland and can also be fitted with a lock. Wall socket UAB 3-poles 16A 6h.
E-number
2425010
Article number
2425010
Support
Rated current [A] 16
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Colour White
Standard Class 1 EN 60044-8
Package size [pcs] 6
Width [mm] 90
Height [mm] 90
Depth [mm] 96
Materials Plastic
Location Surface
Function Basic
Position of earth [h] 6
Wire solid [mm²] 1-4
RAL-nummer RAL9016
Name WALL SOCKET UAB 3P 16A 6h
E-number 2425010
Article number 2425010
Type designation UAB- 216-6 S
No.of Poles [pcs] 3/2P+E
Netweight [kg] 0.28

More variants of Sockets wallmounting Basic UAB 16A IP44

E-number Article number Type designation No.of Poles [pcs] Netweight [kg]
WALL SOCKET UAB 3P 16A 6h 2425010 2425010 UAB- 216-6 S 3/2P+E 0.28
WALL SOCKET UAB 5P 16A 6h 2425011 2425011 UAB 416-6 S 5/3PN+E 0.32

Accessories for Sockets wallmounting Basic UAB 16A IP44

Name E-number Article number Type designation Description
EQUAL LOCKS FOR UA & UAB EQUAL LOCKS FOR UA & UAB 2425014 2425014 UALL Equal locks for UA & UAB.
SYSTEMLOCKS UA & UAB SYSTEMLOCKS UA & UAB 2425015 2425015 UALS Systemlocks fits UA & UAB
