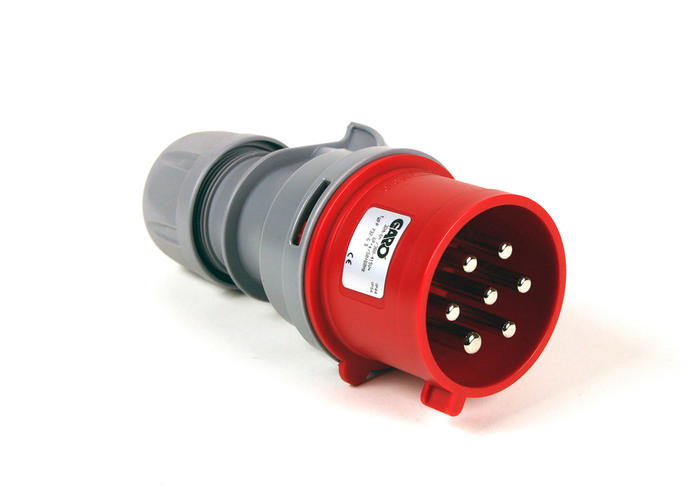

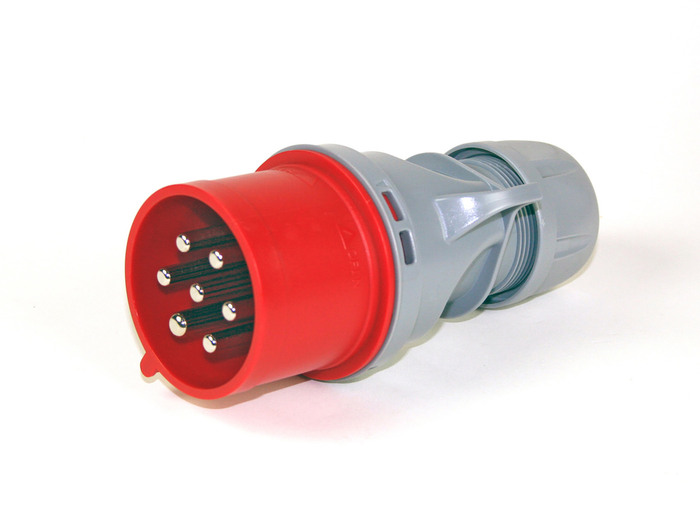

Plugs basic 16A IP44 7P
Plugs basic 16A IP44 7P PLUG 7P 16A 6h
| Rated current [A] | 16 |
|---|---|
| No.of Poles [pcs] | 7P |
| Frequency [Hz] | 50/60 |
| Degree of protection [IP] | 44 |
| Standard | Class 1 EN 60044-8 |
| Width [mm] | 61 |
| Height [mm] | 134 |
| Depth [mm] | 61 |
| Netweight [kg] | 0.19 |
| Materials | Plastic |
| Function | Basic |
| Name | PLUG 7P 16A 6h |
|---|---|
| E-number | 2425908 |
| Article number | 107904 |
| Type designation | P 716-6S |
| Rated voltage [V AC] | 400 |
| Colour | Red |
| Position of earth [h] | 6 |
| RAL-nummer | RAL3000 |
