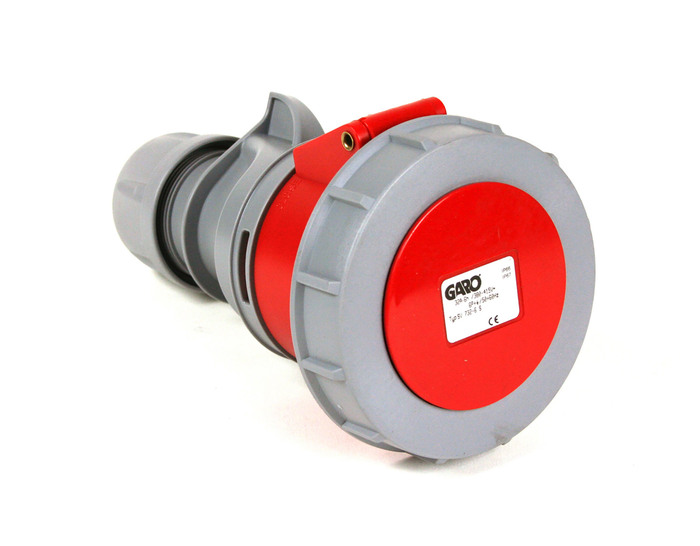

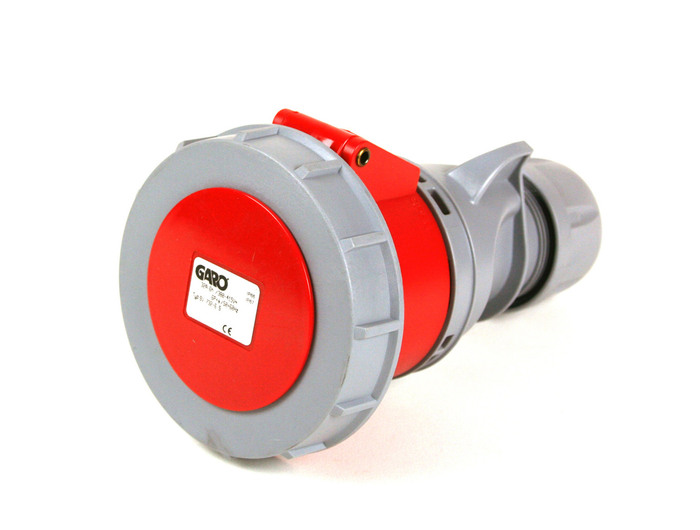

Connectors basic 16A IP67 7P
Connectors basic 16A IP67 7P Connectors basic 7-poles 16A 6h waterproof.
| Type designation | SV 716-6S |
|---|---|
| Rated current [A] | 16 |
| No.of Poles [pcs] | 7P |
| Rated voltage [V AC] | 400 |
| Frequency [Hz] | 50/60 |
| Degree of protection [IP] | 67 |
| Colour | Red |
| Standard | Class 1 EN 60044-8 |
| Width [mm] | 92 |
| Height [mm] | 147 |
| Depth [mm] | 92 |
| Netweight [kg] | 0.25 |
| Materials | Plastic |
| Function | Basic |
| Position of earth [h] | 6 |
| RAL-nummer | RAL3000 |
| Name | CONNECTORS WT 7P 16A 6h |
|---|---|
| E-number | 2425924 |
| Article number | 107763 |
