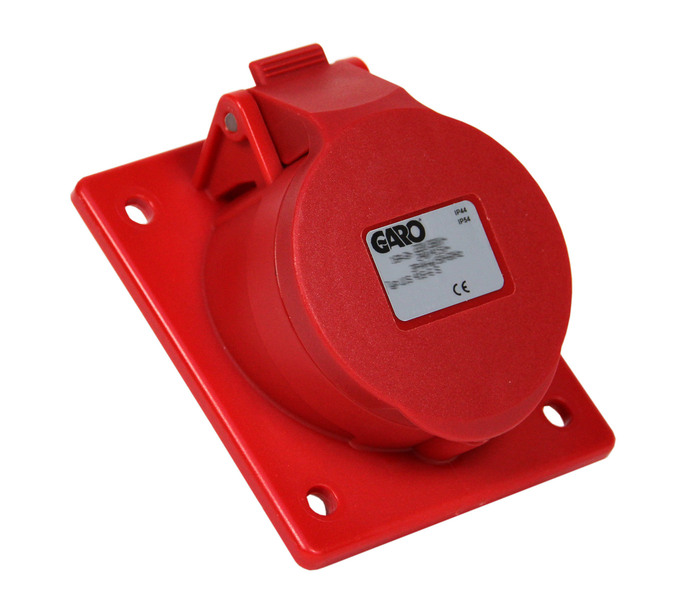

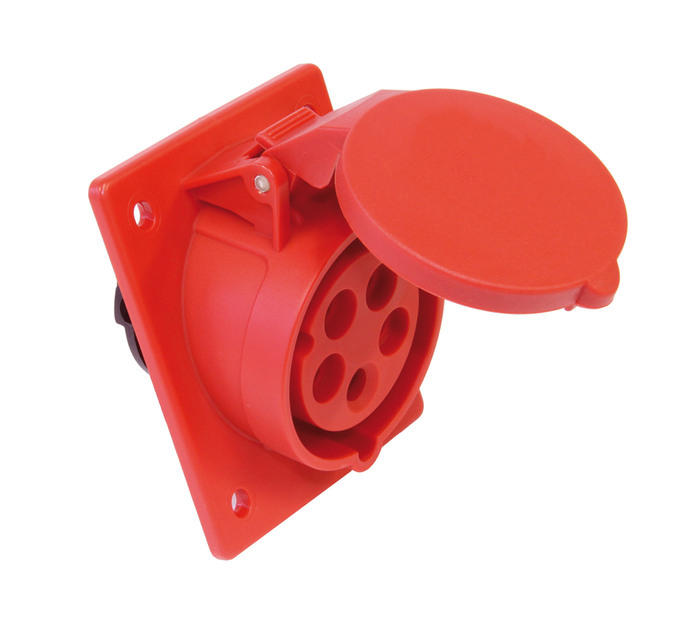

Flanged sockets Basic with sloping mounting plate 16A IP44
Basic, our standard range with a screw function.Socket 16A recess mounting with angled mounting plate. Supplied including seal. Socket sloping basic 5-poles 16A 6h
-
SOCKET SLOPING 3P 16A 2hE-number
2425016Article number
2425016 -
SOCKET SLOPING 3P 16A 3hE-number
2425017Article number
2425017 -
SOCKET SLOPING 3P 16A 4hE-number
2425018Article number
2425018 -
SOCKET SLOPING 3P 16A 5hE-number
2425019Article number
2425019 -
SOCKET SLOPING 3P 16A 6hE-number
2425020Article number
2425020 -
SOCKET SLOPING 3P 16A 7hE-number
2425021Article number
2425021 -
SOCKET SLOPING 3P 16A 9hE-number
2425022Article number
2425022 -
SOCKET SLOPING 3P 16A 12hE-number
2425023Article number
2425023 -
SOCKET SLOPING 4P 16A 2hE-number
2425024Article number
2425024 -
SOCKET SLOPING 4P 16A 3hE-number
2425025Article number
2425025 -
SOCKET SLOPING 4P 16A 4hE-number
2425026Article number
2425026 -
SOCKET SLOPING 4P 16A 6hE-number
2425027Article number
2425027 -
SOCKET SLOPING 4P 16A 7hE-number
2425028Article number
2425028 -
SOCKET SLOPING 4P 16A 9hE-number
2425029Article number
2425029 -
SOCKET SLOPING 4P 16A 10hE-number
2425030Article number
2425030 -
SOCKET SLOPING 4P 16A 11hE-number
2425031Article number
2425031 -
SOCKET SLOPING 5P 16A 2hE-number
2425032Article number
2425032 -
SOCKET SLOPING 5P 16A 3hE-number
2425033Article number
2425033 -
SOCKET SLOPING 5P 16A 4hE-number
2425034Article number
2425034 -
SOCKET SLOPING 5P 16A 6hE-number
2425035Article number
2425035 -
SOCKET SLOPING 5P 16A 7hE-number
2425036Article number
2425036 -
SOCKET SLOPING 5P 16A 9hE-number
2425037Article number
2425037 -
SOCKET SLOPING 5P 16A 11hE-number
2425038Article number
2425038
Rated current [A] | 16 |
---|---|
Degree of protection [IP] | 44 |
Wire flexible [mm²] | 1-2,5 |
Standard | Class 1 EN 60044-8 |
Package size [pcs] | 10 |
Materials | Plastic |
Function | Basic |
Wire solid [mm²] | 1-4 |
Mounting method | Recessed mounting |
Name | SOCKET SLOPING 5P 16A 6h |
---|---|
E-number | 2425035 |
Article number | 2425035 |
Type designation | UIS 416-6 S |
No.of Poles [pcs] | 5/3PN+E |
Rated voltage [V AC] | 230/400 |
Frequency [Hz] | 50/60 |
Colour | Red |
Width [mm] | 80 |
Height [mm] | 97 |
Depth [mm] | 87 |
Netweight [kg] | 0.15 |
Position of earth [h] | 6 |
RAL-nummer | RAL3000 |
