Distribution boxes Solid rubber

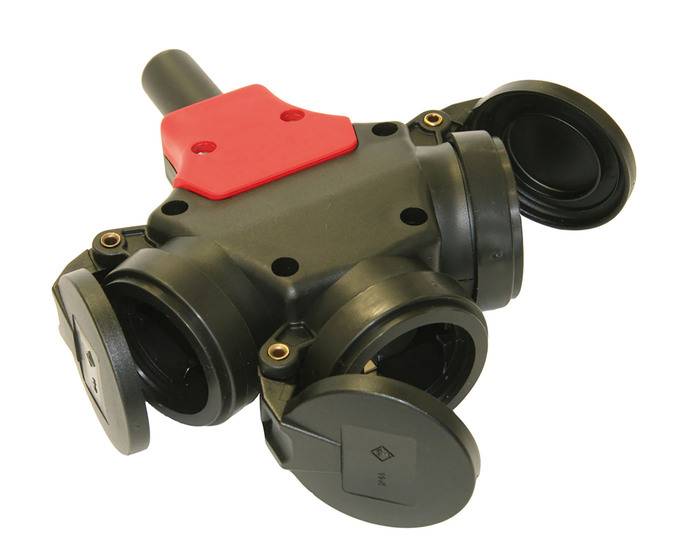

Solid, a tough and durable range that can withstand just about everything, even being run over by construction vehicles. The multiple socket has cable clamps that are open for quicker handling and easier assembly. Screw connection +/- Ph2. Distribution box rubber 3-poles 3 outlets.
E-number
2403008
Article number
2403008
Support
Rated current [A] 16
Rated voltage [V AC] 250
Frequency [Hz] 250
Wire flexible [mm²] 1-2,5

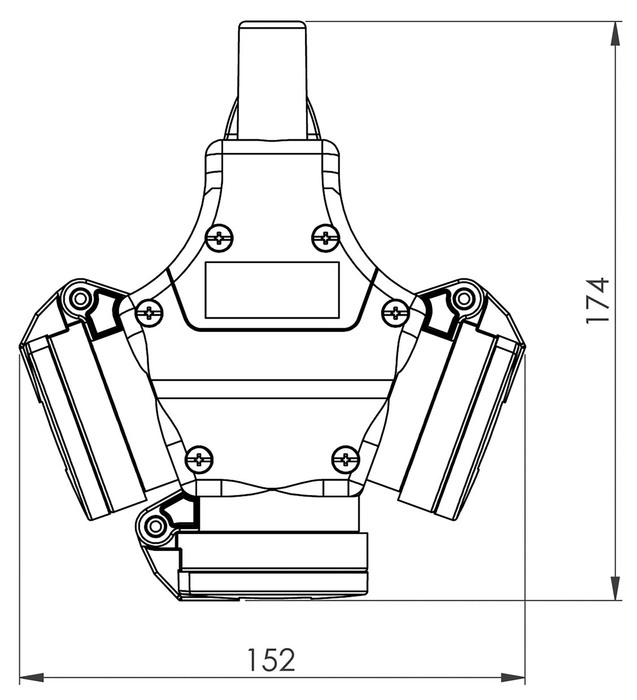

Width [mm] 152
Height [mm] 174
Depth [mm] 57
Materials Rubber
Function Solid
Name DISTRIB.BOX RUBBER 3P 3 OUTL.
E-number 2403008
Article number 2403008
Type designation GSG 3/3
Degree of protection [IP] 54
Colour Black
Standard Class 1 EN 60044-8
Package size [pcs] 5
Netweight [kg] 0.38
RAL-nummer RAL9004

More variants of Distribution boxes Solid rubber

E-number Article number Type designation Degree of protection [IP] Colour Standard Package size [pcs] Netweight [kg] RAL-nummer
DISTRIB.BOX RUBBER 3P 2 OUTL. 2403007 2403007 GSG 2/3 44 Red 10 0.23 RAL3000
DISTRIB.BOX RUBBER 3P 3 OUTL. 2403008 2403008 GSG 3/3 54 Black Class 1 EN 60044-8 5 0.38 RAL9004
DISTRIB.BOX RUBBER 5P 3 OUTL. 2403009 2403009 GSG 3/5 54 Black Class 1 EN 60044-8 5 0.38 RAL9004
