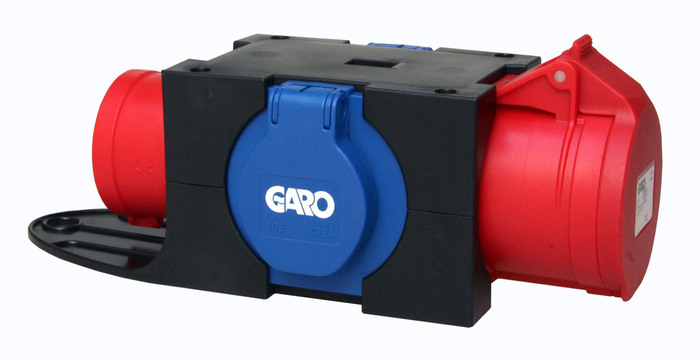

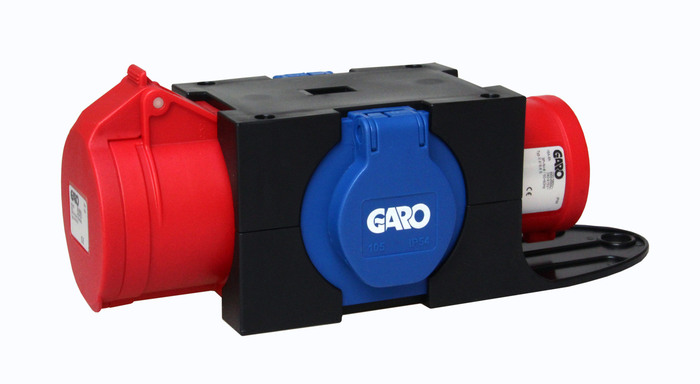

Distribution boxes Basic 16A IP44

GAROs multiple socket, 16A, are equipped with an input for direct connection to the in-line socket. Its integrated suspension bracket also serves as protection against incorrect connection. Distribution box 5-poles 16A 1XII 1XUI 2XSCH.
E-number
2403010
Article number
2403010
Support
Rated current [A] 16
Rated voltage [V AC] 230/400
Frequency [Hz] 50/60
Degree of protection [IP] 44
Wire flexible [mm²] 1-2,5
Colour Black
Package size [pcs] 1
Height [mm] 250
Depth [mm] 80
Materials Plastic
Function Distribution boxes
Position of earth [h] 6
RAL-nummer RAL9004
Name DISTRIB.BOX 16A 1XII 2XSCH.
E-number 2403010
Article number 2403010
Type designation GUS 16/0102
Width [mm] 78
Netweight [kg] 0.50
Flanged plug 1 pcs 16A 3P+N+E 230/400V
Flanged socket outlet 1 pcs 16A 3P+N+E 230/400V
Schuko [pcs] 2

More variants of Distribution boxes Basic 16A IP44

E-number Article number Type designation Width [mm] Netweight [kg] Flanged plug Flanged socket outlet Schuko [pcs]
DISTRIB.BOX 16A 1XII 2XSCH. 2403010 2403010 GUS 16/0102 78 0.50 1 pcs 16A 3P+N+E 230/400V 1 pcs 16A 3P+N+E 230/400V 2
DISTRI BOX 16A 1XII 2XUI 1XSCH 2403011 2403011 GUS 16/0201 150 0.64 1 pcs 16A 3P+N+E 230/400V 2 pcs 16A 3P+N+E 230/400V 1
DISTRIB.BOX 16A 5P 1XII 3XUI 2403012 2403012 GUS 16/0300 188 0.80 1 pcs 16A 3P+N+E 230/400V 3 pcs 16A 3P+N+E 230/400V 0
DIST BOX 16A 3P 1XII 2XUI 1XSCH 2403014 2403014 GUS 16/0022-26 150 0.56 1 pcs 16A 2P+E 230V 2 pcs 16A 2P+E 230V 1
