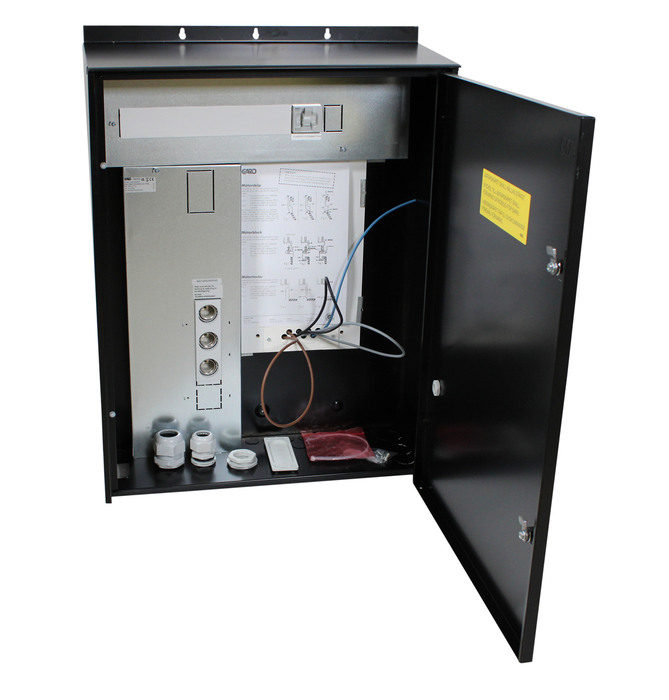

• MET CAB OUTS 25A 1PL BLACK - 1

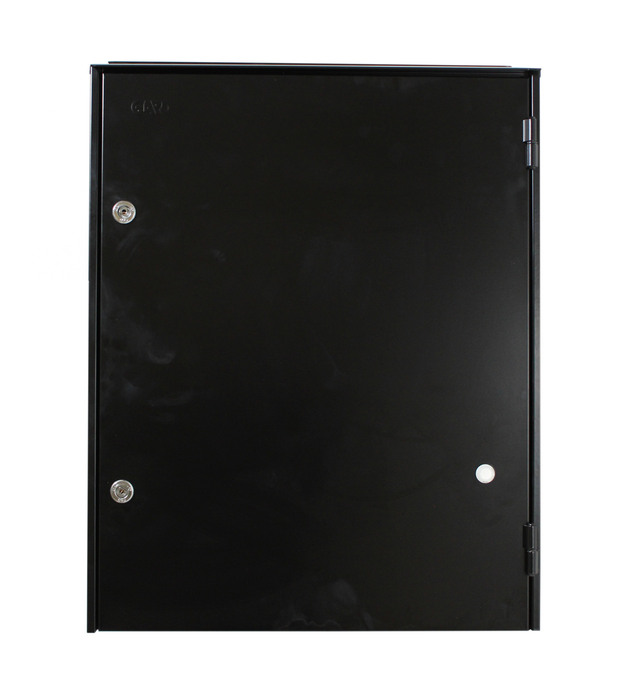

  • MET CAB OUTS 25A 1PL BLACK - 2

Meter cabinets for surface mounting

Meter cabinets for surface mounting. Also tested and approved with addition seals for IP24, which is the minimum requirement for meter cabinets mounted on a post. GUM 1 and GUM-L are supplied with 2 cable entries while GUM-2 has 3. Meter cabinet outside 25A 1place Black
E-number
2270106
Article number
354434
Support
Rated voltage [V AC] 230/400
Degree of protection [IP] 23
Standard SS 430 01 10
Depth [mm] 210
Materials Hot dip galvanized sheet metal
Location Surface
Rated short-circuit cap. [kA] 25
Short-circuit current [kA] 25
Possibility to lock Yes
Name MET CAB OUTS 25A 1PL BLACK
E-number 2270106
Article number 354434
Type designation GUM 1-25 SVART
Rated current [A] 25
Colour RAL9005 Jet Black
Width [mm] 580
Height [mm] 800
Netweight [kg] 19
Prepared module space 18
Prepared module space 4
Incoming splitter term. [mm²] Al/Cu 50
Outgoing connection Cu 16

Manual

More variants of Meter cabinets for surface mounting

E-number Article number Type designation Rated current [A] Colour Width [mm] Height [mm] Netweight [kg] Prepared module space Prepared module space Incoming splitter term. [mm²] Outgoing connection
MET CAB OUTS 25A 1PL 2270010 2270010 GUM 1-25 25 RAL7035 Grey 580 800 19 18 4 Al/Cu 50 Cu 16
MET CAB OUTS 25A 1PL RED 2270011 2270011 GUM 1-25 Faluröd 25 RAL3009 Falu red 580 800 19 18 4 Al/Cu 50 Cu 16
MET CAB OUTS 63A 1PL 2270013 2270013 GUM 1-63 63 RAL7035 Grey 580 800 20 18 4 Al/Cu 50 Cu 16
MET CAB OUTS FARM 25A 1PL 2270014 2270014 GU 1-25 25 RAL7035 Grey 330 840 13 8 3 Cu 2//35 Cu 2//35
MET CAB OUTS L25A 2270015 2270015 GUM-L 1-25 25 RAL7035 Grey 465 705 15 8 4 Al/Cu 50 Cu 16
MET CAB OUTS L25A RED 2270016 2270016 GUM-L 1-25 Faluröd 25 RAL3009 Falu red 465 705 16 8 4 Al/Cu 50 Cu 16
MET CAB OUTS L63A 2270017 2270017 GUM-L 1-63 63 RAL7035 Grey 465 705 16 8 4 Al/Cu 50 Cu 16
MET CAB OUTS 25A 1PL BLACK 2270106 354434 GUM 1-25 SVART 25 RAL9005 Jet Black 580 800 19 18 4 Al/Cu 50 Cu 16
MET CAB OUTS 25A 1PL WHITE 2270107 354435 GUM 1-25 VIT 25 RAL9010 White 580 800 19 18 4 Al/Cu 50 Cu 16
MET CAB OUTS L25A BLACK 2270108 354436 GUM-L 1-25 SVART 25 RAL9005 Jet Black 465 705 15 8 4 Al/Cu 50 Cu 16
MET CAB OUTS L25A WHITE 2270109 354437 GUM-L 1-25 VIT 25 RAL9010 White 465 705 15 8 4 Al/Cu 50 Cu 16

Accessories for Meter cabinets for surface mounting

Name E-number Article number Type designation Description
N TERMINAL 7 N TERMINAL 7 2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL PE7 G TERMINAL PE7 G 2178172 108472 JP7 Terminal PE7 Green
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
LOCKER KEY LOCKER KEY 1646612 1646612 RN Locker key.
THREE EDGE KEY THREE EDGE KEY 1646614 1646614 PG 51 Three edge key
MAIN SW MODULAR 3P 40A MAIN SW MODULAR 3P 40A 2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SW MODULAR 3P 80A MAIN SW MODULAR 3P 80A 2142856 2142856 HB 380 Main switch modular 80A 3-pole
CHANGEOVER 80A 4P CHANGEOVER 80A 4P 2142877 2142877 OMK 4P 80A Changeover I-O-II 4poles 80A
FUSE BASE Dll 1P FUSE BASE Dll 1P 2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE DIII 1P FUSE BASE DIII 1P 2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
SEALKIT METER CABINET IP24 SEALKIT METER CABINET IP24 2270096 2270096 TK-24 Sealkit for meter cabinet IP24
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB 2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 595 TERMINAL BLOCK 595 2270622 2270622 KACL 595 Terminal block 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET 2270628 2270628 TBS Connectionset TBS Al/Cu
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270637 2270637 PTT1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270638 2270638 PLD1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
RESERVE POWER INTAKE RESERVE POWER INTAKE 2270640 2270640 RI 432 Reserve power intake RI 432
CONSTRUCTION KIT CONSTRUCTION KIT 2270641 2270641 BK 416 Build Kits, products adapted for the power supply of equipment during the construction time of a facility, where there is access to meter cabinets.
SEALABLE HOOD PHlll-lll SEALABLE HOOD PHlll-lll 2270644 2270644 PH II-III Sealable hood PHII-III
KIT OBS-F-63 GUM-F KIT OBS-F-63 GUM-F 2270646 2270646 OBS-F-63 Conversion kit outgoing 25A 3-phase group to a 63A 3-phase group
SURGE PROTEC PACKAGE SURGE PROTEC PACKAGE 2270647 2270647 PEK1 Overvoltage protection in finished package solution specially designed for urban areas, wiring and installation components are also included in the kit.
CONVERSION KIT 25-63A CONVERSION KIT 25-63A 2270649 2270649 OBS 63 Conversion kit 25-63A
BLADE FUSES GIM GUM BLADE FUSES GIM GUM 2270650 2270650 OSK Blade fuses for GIM/GUM
ATTACH JUMPER ATTACH JUMPER 2270651 2270651 FB1 Attach jumper 2pcs.
STAND METER CABINET STAND METER CABINET 2270657 2270657 SFU1 Stand for meter cabinet.
RUBBER SLEEVE 50 MET CAB 2270684 2270684 GMM 50 Rubber sleeve 50 fits metal cabinet
TELE MEDIA BOX TELE MEDIA BOX 2270685 2270685 TELE-M Tele media box
LLT 1 LOCK TELEBOX LLT 1 LOCK TELEBOX 2270688 2270688 LLT1 Lock for Telebox.
TELEBOX TELEBOX 2270691 2270691 TELE-D Telebox
FUSE SEALING II FUSE SEALING II 2270888 2270888 SH II Fuse sealing II
KIT PADLOCK M CAB KIT PADLOCK M CAB 2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
