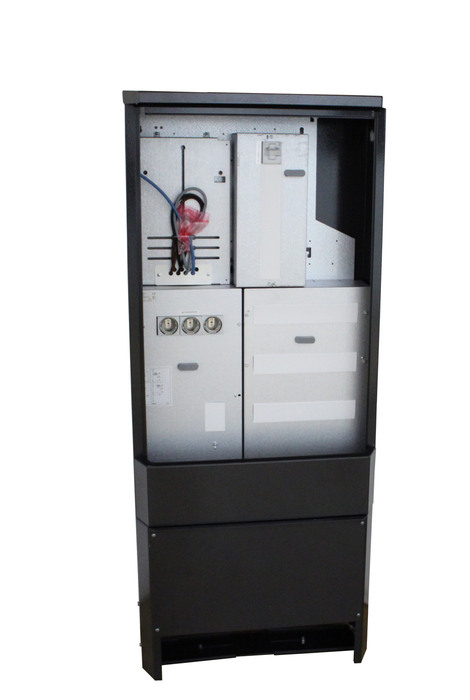

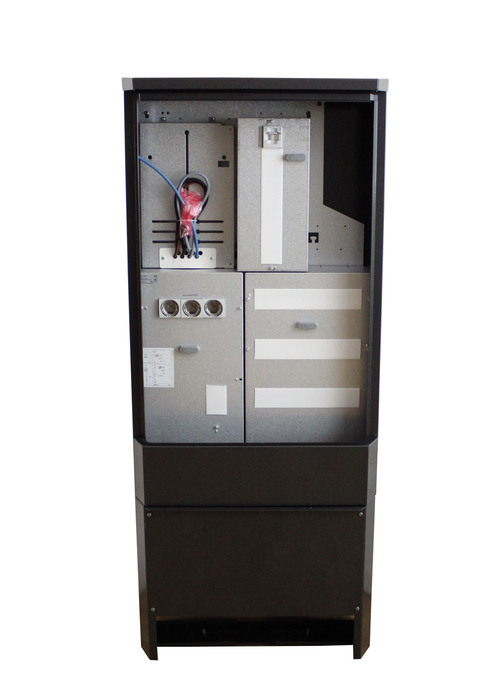

Meter cabinets with space for DIN rail components

Meter cabinets with distribution in the standard version incorporates 63A incoming fuse and a lot of free space for DIN rail components. The cabinets include cable strain relief and cable glands of rubber membrane to avoid soil moisture. Ground metal cabinet Type B with space for DIN rail components.
E-number
2200581
Article number
352911
Support
Type designation MMLK-B-S 1-63
Rated current [A] 63
Rated voltage [V AC] 230/400
Frequency [Hz] 50
Degree of protection [IP] 44
Colour Antracit
Standard SS 430 01 10
Package size [pcs] 1
Width [mm] 620
Height [mm] 1460
Depth [mm] 245
Netweight [kg] 61
Materials Magnelis
Rated short-circuit cap. [kA] 25
Prepared module space 15+14+14+14
Prepared module space 4
Possibility to lock Yes
Incoming splitter term. [mm²] Al/Cu 50
Outgoing connection Cu 16
Space for meters [pcs] 1
Name GROUND MET CAB B 63A DIN
E-number 2200581
Article number 352911

Accessories for Meter cabinets with space for DIN rail components

Name E-number Article number Type designation Description
N TERMINAL 7 N TERMINAL 7 2178171 108471 NP7 Neutral plint 7 blue for DIN mounting
TERMINAL PE7 G TERMINAL PE7 G 2178172 108472 JP7 Terminal PE7 Green
LOCK INCL SPRING LOCK INCL SPRING 1646610 1646610 RT65 Lock including retainingspring
LOCKER KEY LOCKER KEY 1646612 1646612 RN Locker key.
THREE EDGE KEY THREE EDGE KEY 1646614 1646614 PG 51 Three edge key
FUSE BASE Dll 1P FUSE BASE Dll 1P 2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE DIII 1P FUSE BASE DIII 1P 2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINALS N+PE 3X16+6 TERMINALS N+PE 3X16+6 2270618 2270618 NJP4 Terminals N+PE 3X16+6
POTENT TERM MET CAB POTENT TERM MET CAB 2270620 2270620 PUS Potential terminal fits metal cabinet
TERMINAL BLOCK 595 TERMINAL BLOCK 595 2270622 2270622 KACL 595 Terminal block 595
WALL BRACKET MMLK WALL BRACKET MMLK 2200471 351881 VF-MMLK Wall bracket for MMLK
STANDS MMLK STANDS MMLK 2200472 351882 BP-MMLK Stands for MMLK,Black RAL9005
KIT PADLOCK M CAB KIT PADLOCK M CAB 2200473 352150 LS-H Lock set for padlock that fits meter cabinets (padlocks not included).
TOUCH UP PAINT GREY TOUCH UP PAINT GREY 2200474 352515 BFG-H Touch up paint grey
U-CLAMPS 22-28 MMLK U-CLAMPS 22-28 MMLK 2200475 352516 UK-28 U-clamps 22-28 MMLK
U-CLAMPS 34-40 MMLK U-CLAMPS 34-40 MMLK 2200476 352517 UK-40 U-clamps 34-40 MMLK
