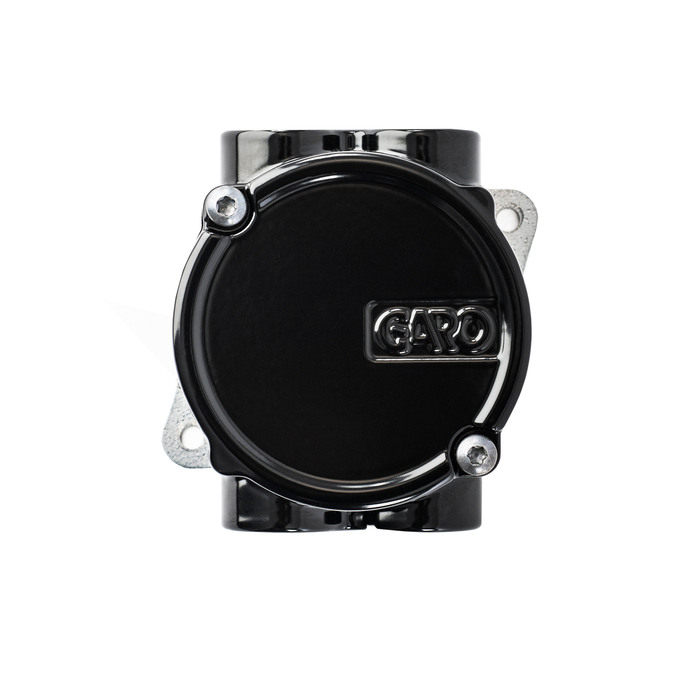

• JUNCTIONBOX LOCUS 4 BLACK - 1

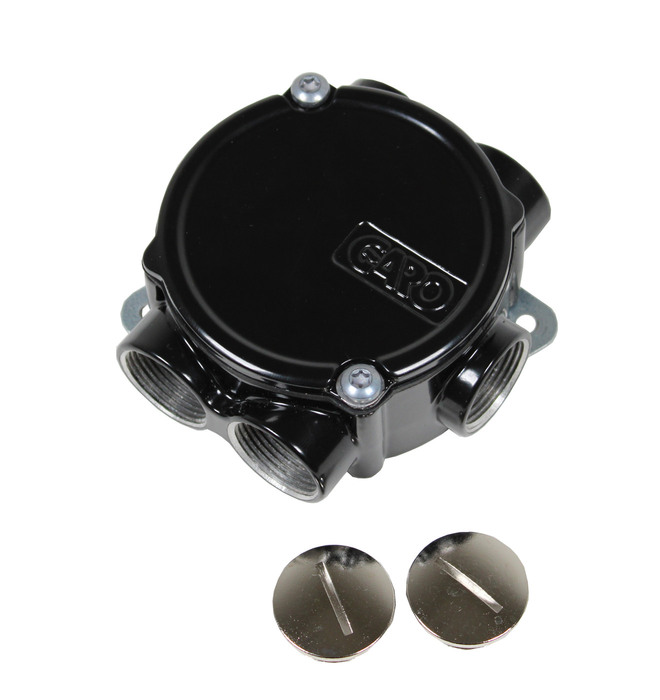

  • JUNCTIONBOX LOCUS 4 BLACK - 2

Junction boxes M25

Junction boxes in light metal with M25 without terminal blocks Junction box light metal 4xM25 outputs black
E-number
1438506
Article number
353966
Support
Degree of protection [IP] 67
Wire flexible [mm²] 16
Temperature range [C] -35...+65
Standard EN 60998-1-2, EN 60670-1
Package size [pcs] 5
Width [mm] 93
Height [mm] 87.50
Depth [mm] 44
Netweight [kg] 0.29
Materials Aluminium
Wire solid [mm²] 16
Mounting method Wall-/ceiling mounting
Impact strength IK10
Name JUNCTIONBOX LOCUS 4 BLACK
E-number 1438506
Article number 353966
Type designation JBL 4-S
Colour Black
Input [st] 4
RAL-nummer RAL9011

Manual

More variants of Junction boxes M25

E-number Article number Type designation Colour Input [st] RAL-nummer
JUNCTIONBOX LOCUS 4 BLACK 1438506 353966 JBL 4-S Black 4 RAL9011
JUNCTIONBOX LOCUS 4 RED 1438507 353967 JBL 4-R Red 4 NCS S 5040-Y80R
JUNCTIONBOX LOCUS 5 BLACK 1438508 353968 JBL 5-S Black 5 RAL9011
JUNCTIONBOX LOCUS 5 RED 1438509 353969 JBL 5-R Red 5 NCS S 5040-Y80R
JUNCTION BOX LOCUS 4 1438394 354035 JBL 4 Grey 4 RAL7035
JUNCTION BOX LOCUS 5 1438395 354036 JBL 5 Grey 5 RAL7035

Accessories for Junction boxes M25

Name E-number Article number Type designation Description
WIRE BRACKET JUNCTION BOXES WIRE BRACKET JUNCTION BOXES 1439870 1439870 LFP Wire bracket junction boxes
MOUNTING PLATE JUNCTION BOXES MOUNTING PLATE JUNCTION BOXES 1440090 1440090 VDFA Mountig plate for VDA, VUJ and anglebracket LOCUS.
ANGLEBRACKET LOCUS ANGLEBRACKET LOCUS 1438396 354037 JBL-AB Anglebracket metal LOCUS
CABLE GLANDS M25 8-16 IP67 CABLE GLANDS M25 8-16 IP67 1457874 354041 FSKR-IP67 Cable gland metall with thread M25 for 8-16mm cable, delivered in 2-pac.
COVERPLUGS M25 IP67 COVERPLUGS M25 IP67 1457875 354042 TP-IP67 Coverplug metal M25 2-pac
