Timer day/week

GARO day/week is easy to set. Switching on and off is then repeated daily or weekly, depending on how the timer has been programmed. The timers is available in 1-channel or 2-channel variants. Time switch 1 channel weekly
E-number
1330550
Article number
108751
Support
Frequency [Hz] 50-60
Degree of protection [IP] 20
Wire flexible [mm²] 0,5-2,5
Colour Grey
Standard EN 60730-1
Package size [pcs] 1
Height [mm] 90
Connection type Quick connection
Function Week clock
Manual control Yes
Mounting method DIN-rail

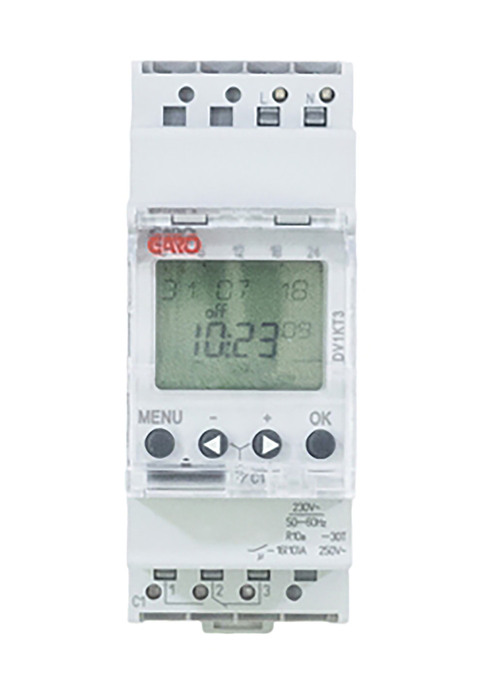

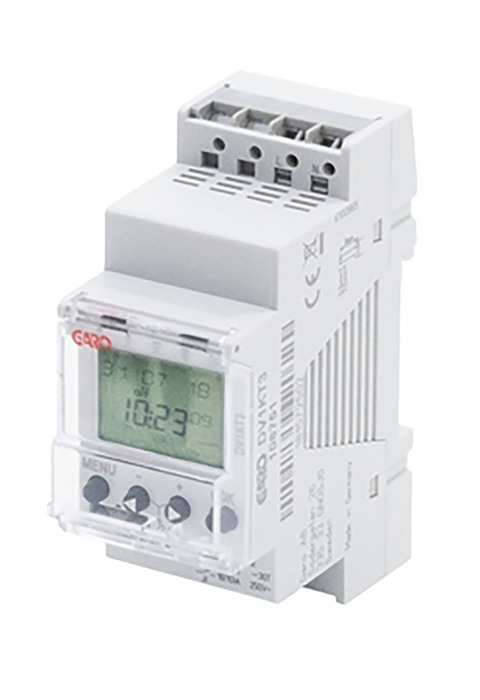

Name TIME SWITCH 1CH WEEKLY
E-number 1330550
Article number 108751
Type designation DV1KT3
Rated current [A] 10
Rated voltage [V AC] 230
Tightening torque [Nm] 1,2
Temperature range [C] -20...+40
Modules [pcs] 2
Power loss [W] 0,4
Width [mm] 36
Depth [mm] 64
Netweight [kg] 0.10
Channels [pcs] 1
Power reserve [year] 3

More variants of Timer day/week

E-number Article number Type designation Rated current [A] Rated voltage [V AC] Tightening torque [Nm] Temperature range [C] Modules [pcs] Power loss [W] Width [mm] Depth [mm] Netweight [kg] Channels [pcs] Contact type Power reserve [year] Operation time meter External input
TIME SWITCH 1CH 1MOD WEEKLY 1330396 108276 DV1K1M 16(4) 230-240 -25...+55 1 1,3 18 60 0.08 1 Change-over contacts 10 Yes No
TIME SWITCH 1CH WEEKLY 1330550 108751 DV1KT3 10 230 1,2 -20...+40 2 0,4 36 64 0.10 1 3
TIME SWITCH 2CH WEEKLY 1330551 108752 DV2KT3 10 230 1,2 -20...+40 2 0,4 36 64 0.12 2 3

Accessories for Timer day/week

Name E-number Article number Type designation Description
SOFTWARE KIT AND CARD READER SOFTWARE KIT AND CARD READER 1330401 108281 G-OB PC Software kit and card reader
MEMORY STICK T2 TIME SWITCH MEMORY STICK T2 TIME SWITCH 1330554 108755 G-OB-BT Memory stick T2 time switch bluetooth
