Installation terminals

GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. Terminal block grey 1-poles for cable from 16mm² up to 95mm² copper and aluminum.
E-number
2670459
Article number
108605
Standard IEC 61238-1:2003, Class A
Materials Plastic
Connection type Screw
Mounting method DIN
Position for connection Sideways

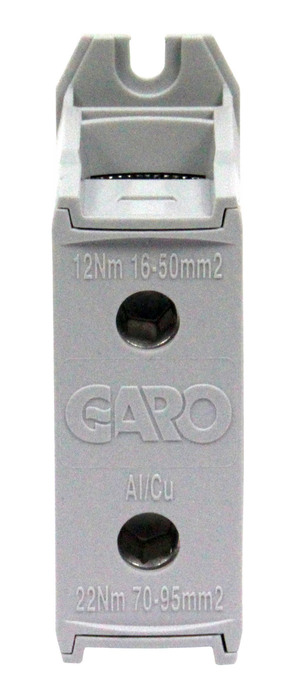

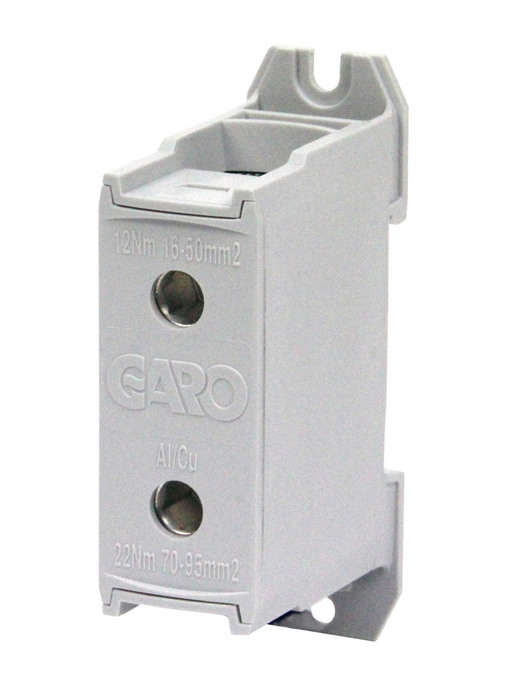

Name TERMINAL BL GREY 95mm² Al/CU 1P
E-number 2670459
Article number 108605
Type designation GKL 1x95 GRÅ
Rated current [A] Al: 200 / Cu: 245
Poles 1
Rated voltage [V AC] 1000
Colour Grey
Tightening torque [Nm] 12-22
Package size [pcs] 22
Width [mm] 24
Height [mm] 82
Depth [mm] 49
Netweight [kg] 0.07
connec conductor cross-sec[mm²] 95

More variants of Installation terminals

E-number Article number Type designation Rated current [A] Poles Rated voltage [V AC] Colour Tightening torque [Nm] Package size [pcs] Width [mm] Height [mm] Depth [mm] Netweight [kg] connec conductor cross-sec[mm²]
TERMINAL BL GREY 50mm² Al/CU 1P 2670453 108599 GKL 1x50 GRÅ Al: 160 / Cu: 160 1 1000 Grey 5-10 32 18 82 42 0.04 50
TERMINAL BL GREY 50mm² Al/CU 2P 2670454 108600 GKL 2x50 GRÅ Al: 160 / Cu: 320 2 1000 Grey 5-10 18 31 82 42 0.07 50
TERMINAL BL BLUE 50mm² 1P 2670455 108601 GKL 1x50 BLÅ Al: 160 / Cu: 160 1 1000 Blue 5-10 32 18 82 42 0.04 50
TERMINAL BL BLUE 50MM² 2P 2670456 108602 GKL 2x50 BLÅ Al: 160 / Cu: 320 2 1000 Blue 5-10 18 31 82 42 0.07 50
TERMINAL BL Y/G 50mm² 1P 2670457 108603 GKL 1x50 G/G Al: 160 / Cu: 160 1 1000 Yellow/Green 5-10 32 18 82 42 0.04 50
TERMINAL BL Y/G 50mm² 2P 2670458 108604 GKL 2x50 G/G Al: 160 / Cu: 320 2 1000 Yellow/Green 5-10 18 31 82 42 0.07 50
TERMINAL BL GREY 95mm² Al/CU 1P 2670459 108605 GKL 1x95 GRÅ Al: 200 / Cu: 245 1 1000 Grey 12-22 22 24 82 49 0.07 95
TERMINAL BL GREY 95mm²  Al/CU 2P 2670460 108606 GKL 2x95 GRÅ Al: 400 / Cu: 490 2 1000 Grey 12-22 12 42 82 49 0.12 95
TERMINAL BL BLUE 95mm² 1P 2670461 108607 GKL 1x95 BLÅ Al: 200 / Cu: 245 1 1000 Blue 12-22 22 24 82 49 0.07 95
TERMINAL BL BLUE 95mm² 2P 2670462 108608 GKL 2x95 BLÅ Al: 400 / Cu: 490 2 1000 Blue 12-22 12 42 82 49 0.12 95
TERMINAL BL Y/G 95mm² 1P 2670463 108609 GKL 1x95 G/G Al: 200 / Cu: 245 1 1000 Yellow/Green 12-22 22 24 82 49 0.07 95
TERMINAL BL Y/G 95mm² 2P 2670464 108610 GKL 2x95 G/G Al: 250 / Cu: 320 2 1000 Yellow/Green 12-22 12 42 82 49 0.12 95
TERMINAL BL GREY 150mm² Al/CU 1P 2670465 108611 GKL 1x150 GRÅ Al: 250 / Cu: 320 1 1000 Grey 12-38 18 30 106 57 0.15 150
TERMINAL BL GREY 150mm²  Al/CU 2P 2670466 108612 GKL 2x150 GRÅ Al: 500 / Cu: 640 2 1000 Grey 12-38 10 53 106 57 0.26 150
TERMINAL BL  BLUE 150mm² 1P 2670467 108613 GKL 1x150 BLÅ Al: 250 / Cu: 320 1 1000 Blue 12-38 18 30 106 57 0.15 150
TERMINAL BL  BLUE 150mm² 2P 2670468 108614 GKL 2x150 BLÅ Al: 500 / Cu: 640 2 1000 Blue 12-38 10 53 106 57 0.26 150
TERMINAL BL Y/G 150mm² 1P 2670469 108615 GKL 1x150 G/G Al: 250 / Cu: 320 1 1000 Yellow/Green 12-38 18 30 106 57 0.15 150
TERMINAL BL Y/G 150mm² 2P 2670470 108616 GKL 2x150 G/G Al: 500 / Cu: 640 2 1000 Yellow/Green 12-38 10 53 106 57 0.26 150
TERMINAL BL GREY  240mm² Al/CU 1P 2670471 108617 GKL 1x240 GRÅ Al: 315 / Cu: 425 1 1000 Grey 25-55 14 37 118 67 0.27 240
TERMINAL BL GREY  240mm² Al/CU 2P 2670472 108618 GKL 2x240 GRÅ Al: 630 / Cu: 815 2 1000 Grey 25-55 8 66 118 67 0.49 240
TERMINAL BL BLUE  240mm² 1P 2670473 108619 GKL 1x240 BLÅ Al: 315 / Cu: 425 1 1000 Blue 25-55 14 37 118 67 0.27 240
TERMINAL BL BLUE  240mm² 2P 2670474 108620 GKL 2x240 BLÅ Al: 630 / Cu: 815 2 1000 Blue 25-55 8 66 118 67 0.49 240
TERMINAL BL Y/G  240mm² 1P 2670475 108621 GKL 1x240 G/G Al: 315 / Cu: 425 1 1000 Yellow/Green 25-55 14 37 118 67 0.27 240
TERMINAL BL Y/G  240mm² 2P 2670476 108622 GKL 2x240 G/G Al: 630 / Cu: 815 2 1000 Yellow/Green 25-55 8 66 118 67 0.49 240
TERMINAL BL GREY 16mm² 1P 2670681 110227 GKL 1x16 GRÅ Al: 75 / Cu: 76 1 1000 Grey 5-10 60 13 47 32 0.02 16
TERMINAL BL BLUE  16mm² 1P 2670682 110228 GKL 1x16 BLÅ Al: 75 / Cu: 76 1 1000 Blue 5-10 60 13 47 32 0.02 16
TERMINAL BL Y/G 16mm² 1P 2670683 110229 GKL 1x16 G/G Al: 75 / Cu: 76 1 1000 Yellow/Green 5-10 60 13 47 22 0.02 16
TERM BLOCK CON 5P AL/CU MVC-N 2670477 353155 P5-N 100 5 230 Grey SE ETIKETT PLINT 1 90 56 50 0.34 16
