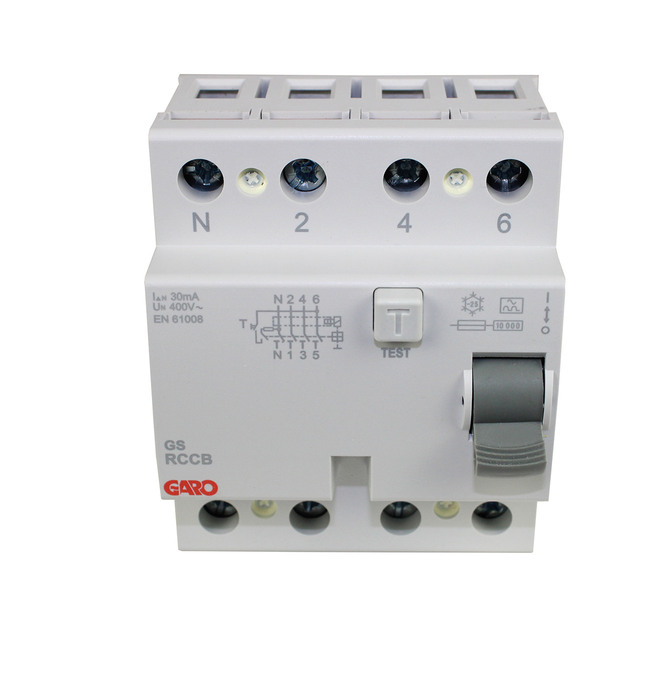

• RCD 63A 4P 30mA - 1

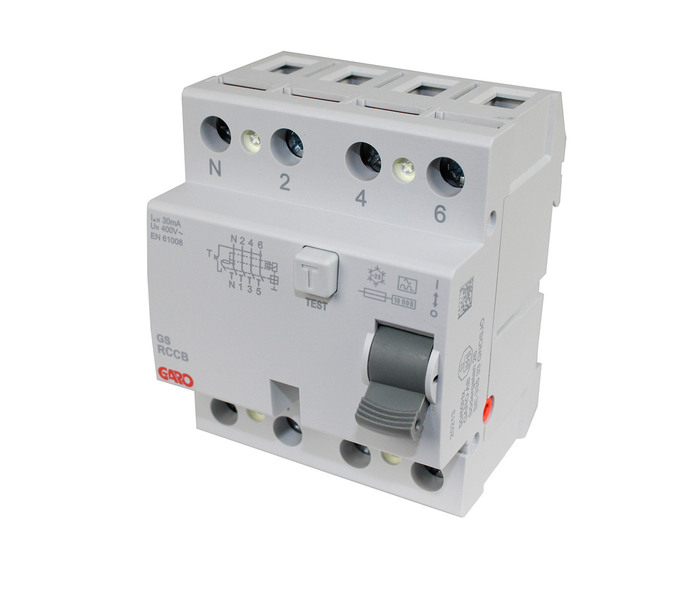

  • RCD 63A 4P 30mA - 2

RCCB 6kA

Residual current device type G-RCD is designed for installation in homes to protect people and property against fault currents in the event of short-circuit currents up to 6kA. Neutral is located to the left of the 4-pole RCDs. RCCB type RCD 63A 4-pole 30mA
E-number
2163319
Article number
110090
Support
Frequency [Hz] 50/60
Degree of protection [IP] 20
Wire flexible [mm²] 1,5-25
Colour Grey
Tightening torque [Nm] 3
Temperature range [C] -25...+35
Storage temperature [C] -35...+60
Standard EN 61008-1
Package size [pcs] 1
Height [mm] 88
Depth [mm] 72
Materials Plastic
Rated short-circuit cap. [kA] 6
Connection type Screw
Claim prefuse [A] 100
Sensitivity [mA] 30
Mounting method DIN-rail
Name RCD 63A 4P 30mA
E-number 2163319
Article number 110090
Type designation RCCB GS 63A 30mA 6kA 4P
Rated current [A] 63
Poles 4
Rated voltage [V AC] 400
Modules [pcs] 4
Width [mm] 72
Netweight [kg] 0.32

Instruction Sheet

Manual

More variants of RCCB 6kA

E-number Article number Type designation Rated current [A] Poles Rated voltage [V AC] Modules [pcs] Width [mm] Netweight [kg]
RCCB 25A 2P 30mA 2163316 110086 RCCB GS 25A 30mA 6kA 2P 25 2 230 2 36 0.20
RCCB 40A 2P 30mA 6kA 2163317 110087 RCCB GS 40A 30mA 6kA 2P 40 2 230 2 36 0.20
RCD 25A 4P 30mA 6kA 2163318 110088 RCCB GS 25A 30mA 6kA 4P 25 4 400 4 72 0.30
RCD 40A 4P 30mA 6kA 2163315 110089 RCCB GS 40A 30mA 6kA 4P 40 4 400 4 72 0.30
RCD 63A 4P 30mA 2163319 110090 RCCB GS 63A 30mA 6kA 4P 63 4 400 4 72 0.32
RCCB 63A 30mA 2P 6kA 2163320 110091 RCCB GS 63A 30mA 6kA2P 63 2 230 2 36 0.20

Accessories for RCCB 6kA

Name E-number Article number Type designation Description
AUXILIARY SWITCH RCCB AUXILIARY SWITCH RCCB 2163134 2163134 HLPK D Auxiliary switch for RCCB type GCD, G-RCD and GS, 1c+1o.
