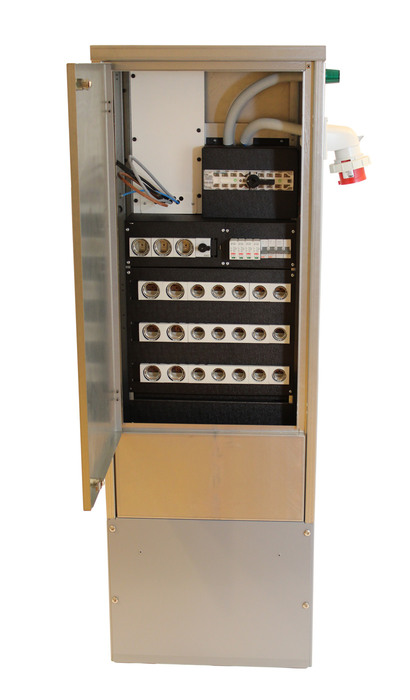

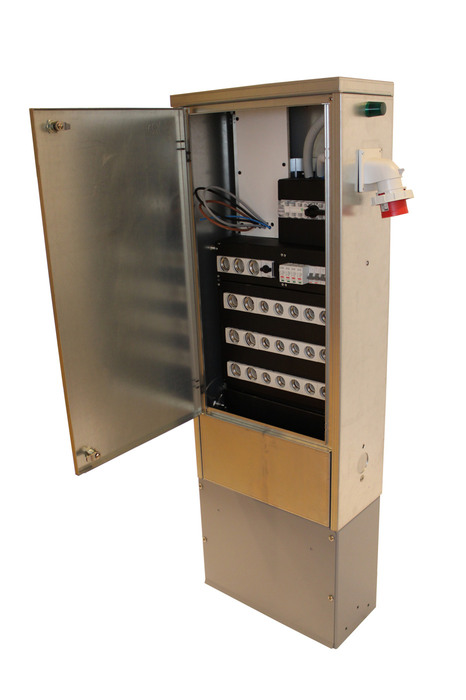

Cable cabinet meter and reserve power 5 groups
Cable cabinet with wooden plate for mounting meters and switches for reserve power. The cabinet is available in two variants with 2 DIII and 5 DII output groups, with inlets 32A or 63A. The cabinets are equipped with an indicator light that tells when the mains voltage has returned. The cabinets are also equipped with surge protection of coarse / medium character. Distribution cabinet measuring and reserve power 5 DII and 2 DIII groups with 32A inlet.
| Rated current [A] | 63 |
|---|---|
| Rated voltage [V AC] | 400 |
| Frequency [Hz] | 50 |
| Degree of protection [IP] | 34D |
| Colour | Grå/Grey |
| Standard | EN 61439-5 |
| Package size [pcs] | 1 |
| Width [mm] | 522 |
| Height [mm] | 1140 |
| Depth [mm] | 250 |
| Materials | Magnelis |
| Short-circuit current [kA] | 25 |
| Fuse size | 5XDll+2XDlll |
| Incoming terminal Cu/Al [mm²] | 50 Al/Cu |
| Impact strength | IK10 |
| Outgoing terminal [mm²] | 16 Cu |
| Light relay | Nej/No |
| Time switch | Nej/No |
| Measurement | Ja/Yes |
| Name | DISTR CABINET 5 ROW RES 32A M |
|---|---|
| E-number | 0736038 |
| Article number | 353778 |
| Type designation | GFSMR-5D-2-32 |
| Netweight [kg] | 68 |
