Fuse base boxes L

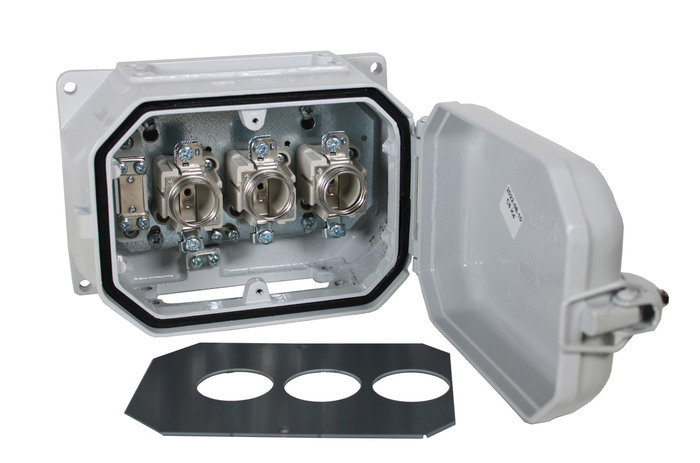

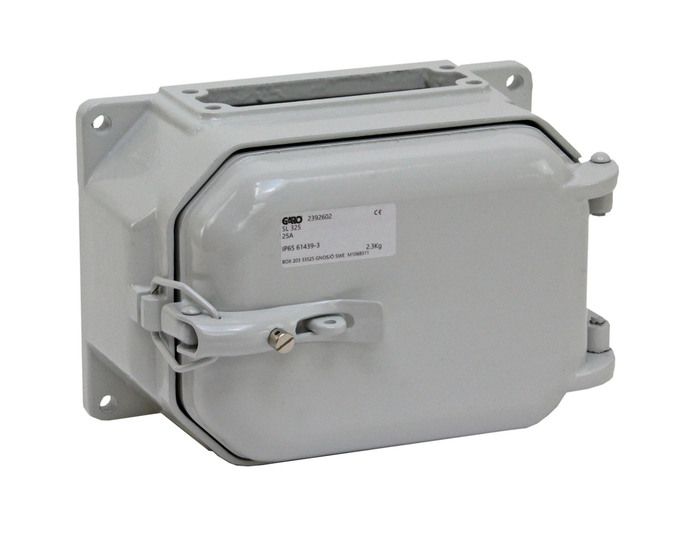

3-pole fuse-protected group with neutral terminal and earth conductor terminal. The box consists of 3-pole screw-base fuse with a front-operated 3-pole switch, which in the ON position prevents the lid from being opened. Fuse base box SL 25A 3x1phase alloy
E-number
2392602
Article number
2392602
Support
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 61439-3
Materials Light metal
Name FUSE BASE BOX -SL25A 3/1 A
E-number 2392602
Article number 2392602
Type designation SL 325
Rated current [A] 25
Width [mm] 210
Height [mm] 150
Depth [mm] 120
Netweight [kg] 2.30
Fuse size DII
No.of poles [pcs] 3/1

More variants of Fuse base boxes L

E-number Article number Type designation Rated current [A] Width [mm] Height [mm] Depth [mm] Netweight [kg] Fuse size No.of poles [pcs]
FUSE BASE BOX -SL25A 3/1 A 2392602 2392602 SL 325 25 210 150 120 2.30 DII 3/1
FUSE BASE BOX -SL63A 3/1 A 2392606 2392606 SL 363 63 235 170 120 2.80 DIII 3/1
FUSE BASE BOX-SLU25A 4/1 A 2392623 2392623 SLU 425 25 220 210 120 3.10 DII 4/1
FUSE BASE BOX-SLU63A 3/1 A 2392626 2392626 SLU 363 63 220 210 120 3 DIII 3/1
FUSE BOX 25A 1/1 A 2392671 2392671 SRI 125 25 140 100 102 1.15 DII 1/1
FUSE BASE BOX-S 25A 3/1 A 2392674 2392674 S 325 25 102 180 120 1.65 DII 3/1
