Distribution boxes

All boxes are designed for the assembly of different connection inserts, depending on the cable type and cross section, see the compilation of connection inserts. Distribution box 260 flange 13/13 Aloy
E-number
2393803
Article number
2393803
Support
Degree of protection [IP] 65
Colour RAL7035 Grey
Standard EN 61439-3
Materials Light metal

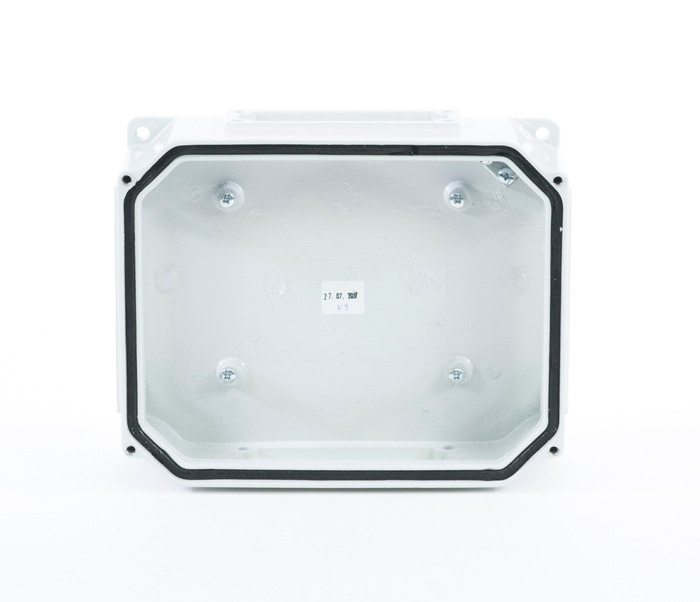

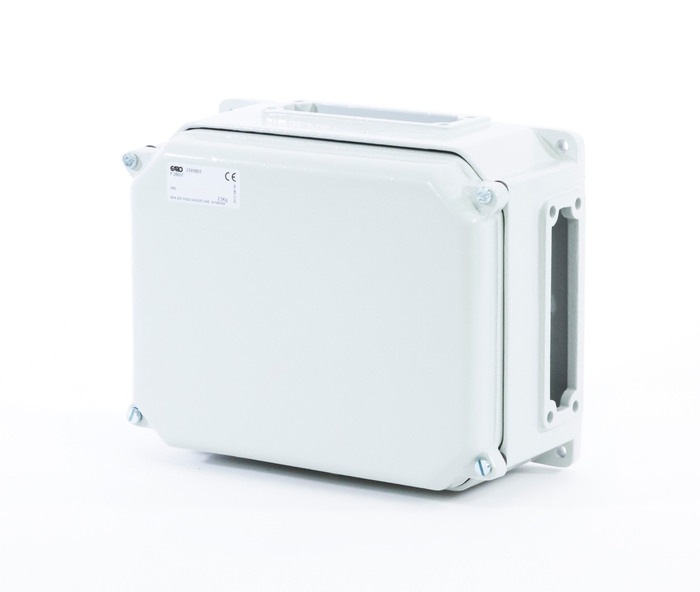

Name DISTRIB BOX 260 l/l LM
E-number 2393803
Article number 2393803
Type designation F 260l/l
Width [mm] 260
Height [mm] 210
Depth [mm] 120
Netweight [kg] 2.60

More variants of Distribution boxes

E-number Article number Type designation Width [mm] Height [mm] Depth [mm] Netweight [kg]
DISTRIB BOX 210 l/l LM 2393801 2393801 F 210l/l 210 210 120 2.30
DISTRIB BOX 240 l/l LM 2393802 2393802 F 240l/l 240 210 120 2.10
DISTRIB BOX 260 l/l LM 2393803 2393803 F 260l/l 260 210 120 2.60
DISTRIB BOX 360 l/l LM 2393810 2393810 F 360l/l 360 210 120 2.80
DISTRIB BOX 300 ll/ll LM 2393824 2393824 FSA 300ll/ll 300 210 145 3.30
DISTRIB BOX 360 ll/ll LM 2393868 2393868 FS 360ll/ll 360 300 145 4.90
DISTRIB BOX 420 ll/ll LM 2393870 2393870 FS 420 ll/ll 420 300 145 4.90

Accessories for Distribution boxes

Name E-number Article number Type designation Description
INS COPPERCAB 4X16 INS COPPERCAB 4X16 2393905 K 416 Coupling insert for copper cable 4x16
INS COPPERCAB 4X35 INS COPPERCAB 4X35 2393907 K 435 Coupling insert for copper cable 4x35
INS COPPERCAB 4X95 INS COPPERCAB 4X95 2393909 K 495 Coupling insert for copper cable 4x95
INS COPPERCAB 4X120 INS COPPERCAB 4X120 2393911 K 4120 Coupling insert for copper cable 4x120
INS COPPERCAB 4X185 INS COPPERCAB 4X185 2393913 K 4185 Coupling insert for copper cable 4x185
INS COPPERCAB 5X16 INS COPPERCAB 5X16 2393915 K 516 Coupling insert for copper cable 5x16
INS COPPERCAB 5X35 INS COPPERCAB 5X35 2393917 K 535 Coupling insert for copper cable 5x35
INS COPPER & AL CAB 5X50 INS COPPER & AL CAB 5X50 2393918 2393918 K 550 AL Coupling insert for copper and aluminum cable 5x35
INS COPPERCAB 5X95 INS COPPERCAB 5X95 2393919 K 595 Coupling insert for copper cable 5x95
INS COPPER & AL CAB 5X95 INS COPPER & AL CAB 5X95 2393920 2393920 K 595 AL Coupling insert for copper and aluminum cable 5x95
INS COPPERCAB 5X120 INS COPPERCAB 5X120 2393921 K 5120 Coupling insert for copper cable 5x120
INS COPPER & AL CAB 5X150 INS COPPER & AL CAB 5X150 2393922 2393922 K 5150 AL Coupling insert for copper and aluminum cable 5x150
INS COPPERCAB 5X185 INS COPPERCAB 5X185 2393923 K 5185 Coupling insert for copper cable 5x185
INS COPPER & AL CAB 5X240 INS COPPER & AL CAB 5X240 2393924 2393924 K 5240 AL Coupling insert for copper and aluminum cable 5x240
INS COPPER & AL CAB 2X2X50 INS COPPER & AL CAB 2X2X50 2393949 2393949 K 2X550 AL Coupling insert for copper and aluminum cable 5x550
INS COPPER & AL CAB 2X2X95 INS COPPER & AL CAB 2X2X95 2393950 2393950 K 2X595 AL Coupling insert for copper and aluminum cable 5x595
INS COPPER & AL CAB 2X2X150 INS COPPER & AL CAB 2X2X150 2393951 2393951 K 2X5150 AL Coupling insert for copper and aluminum cable 2x5150
INS COPPER & AL CAB 2X2X240 INS COPPER & AL CAB 2X2X240 2393953 2393953 K 2X5240 AL Coupling insert for copper and aluminum cable 2x5240
