Entity balance basic

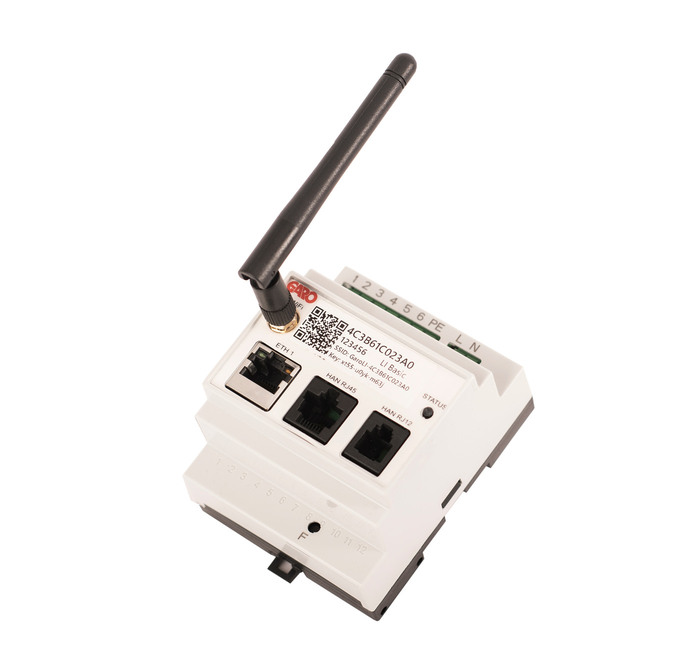

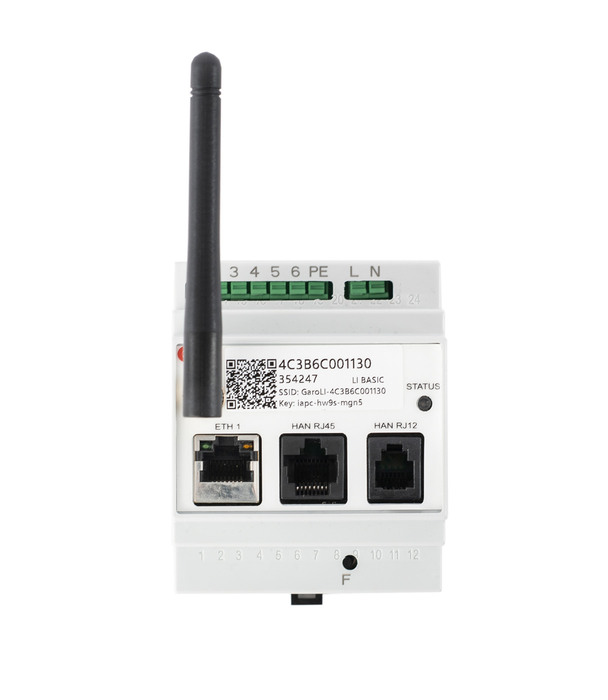

The Entity balance basic load interface is equipped with: 2 HAN-ports (RJ12 and RJ45) ports for connection to energy meters supplied from the power company that provide realtime energy usage. 1 Ethernetport (RJ45) LAN-connection. 1 Wifi Antenna SMA90mm for WifiMesh to Entity Chargers, or to connect to internet via Wifi. Connectionsockets for CT:s 333mV (optional accessory). Entity load interface unit basic

E-number
2701041

Article number
354247

Support

Name	LOAD INTERFACE ENTITY BALANCEB
E-number	2701041
Article number	354247
Type designation	ELIB
Rated current [A]	0,0016
Materials	Plastic
Colour	Grey
Rated voltage [V AC]	230/400
Package size [pcs]	1
Standard	EN 62368-1
Netweight [kg]	0.30
Width [mm]	72
Height [mm]	86
Depth [mm]	49
Frequency [Hz]	50
Temperature range [C]	-40...+40
Mounting method	DIN-rail
Degree of protection [IP]	20
Storage temperature [C]	-40...+40
Phases	1
RAL-nummer	RAL7035

Manual

Entity Load Interface Balance Basic (EN) Quickguide 380276

More variants of Entity balance basic

	E-number	Article number	Type designation	Rated current [A]	Materials	Colour	Rated voltage [V AC]	Package size [pcs]	Standard	Netweight [kg]	Width [mm]	Height [mm]	Depth [mm]	Frequency [Hz]	Temperature range [C]	Mounting method	Degree of protection [IP]	Storage temperature [C]	Phases	RAL-nummer
	2701041	354247	ELIB	0,0016	Plastic	Grey	230/400	1	EN 62368-1	0.30	72	86	49	50	-40...+40	DIN-rail	20	-40...+40	1	RAL7035
	2701027	354385	ELIBCT100ANTMCB4							0.60	175	220	100

Accessories for Entity balance basic

Name	E-number	Article number	Type designation	Description
CT KIT 100A/333mV	4263373	110704	GDT 16-100A	Current Trafo separable 100A/333mV
RCBO GC C-CHAR 10A 2P	2163284	2163284	RCBO GC C10A 1+N	RCBO GC C-Characteristic 10A 6kA 2-pole
ANTENN KIT EFFECTMODUL ENTITY	2701026	354295	ELIANT	Extern antenna kit Wifi 1,5m cable, SMA, mountinghole:19mm, 2,4 och 5GHz
