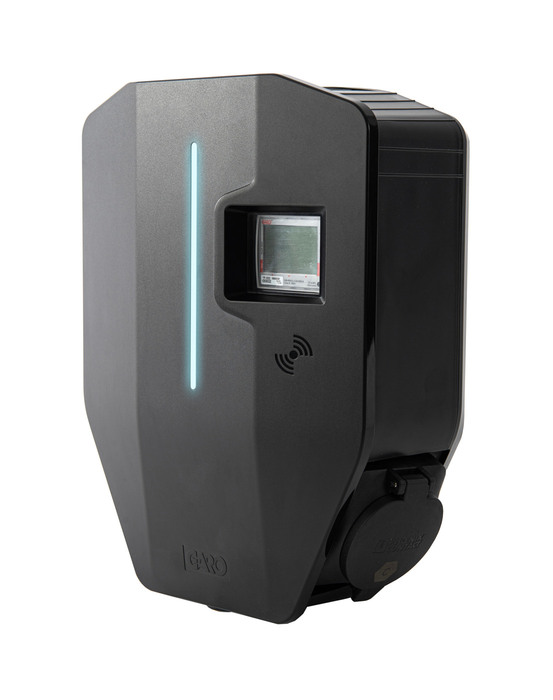

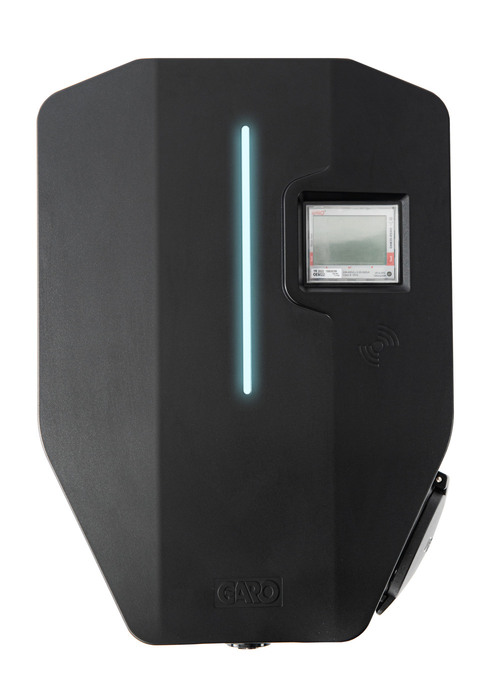

Entity PRO Wallbox
Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Available for purchase in a single or dual version. Entity PRO comes with a fixed cable available in various lengths or an outlet. Built-in Energymeter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over LTE CAT M1, Ethernet or Wi-Fi. NB: Complete wallbox. Charging station Entity Pro 22kW with outlet, phasebalancing, visible meter MID and modem with SIM for Garo Connect
-
WALLBOX ENTITY PRO 22E-number
2701000Article number
354200 -
WALLBOX ENTITY PRO 2X22E-number
2701001Article number
354201 -
WALLBOX ENTITY PRO 14 5ME-number
2701002Article number
354202 -
WALLBOX ENTITY PRO 22 MIDE-number
2701003Article number
354203 -
WALLBOX ENTITY PRO 2x22 MIDE-number
2701004Article number
354204
| Materials | Plastic |
|---|---|
| Colour | Black |
| Rated voltage [V AC] | 230/400 |
| AC/DC output | Type2 outlet |
| Package size [pcs] | 1 |
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Frequency [Hz] | 50 |
| Temperature range [C] | -40C...+40C |
| Mounting method | Wall mounting |
| Degree of protection [IP] | 54 |
| Storage temperature [C] | -40C...+40C |
| RFID | Yes |
| Impact strength | IK10 |
| Locks | Yes |
| Short-circuit current [kA] | 10 |
| RAL-nummer | RAL9011 |
| Name | WALLBOX ENTITY PRO 22 MID |
|---|---|
| E-number | 2701003 |
| Article number | 354203 |
| Type designation | EPCSO00332SVGI |
| Rated current [A] | 32 |
| Meter | Visible meter |
| Cable [m] | Not included |
| Netweight [kg] | 4.20 |
| Width [mm] | 240 |
| Height [mm] | 340 |
| Depth [mm] | 150 |
| Phases | 3 |
| Charging current [A] | 0-32 |
| Effekt [kW] | 22 |
